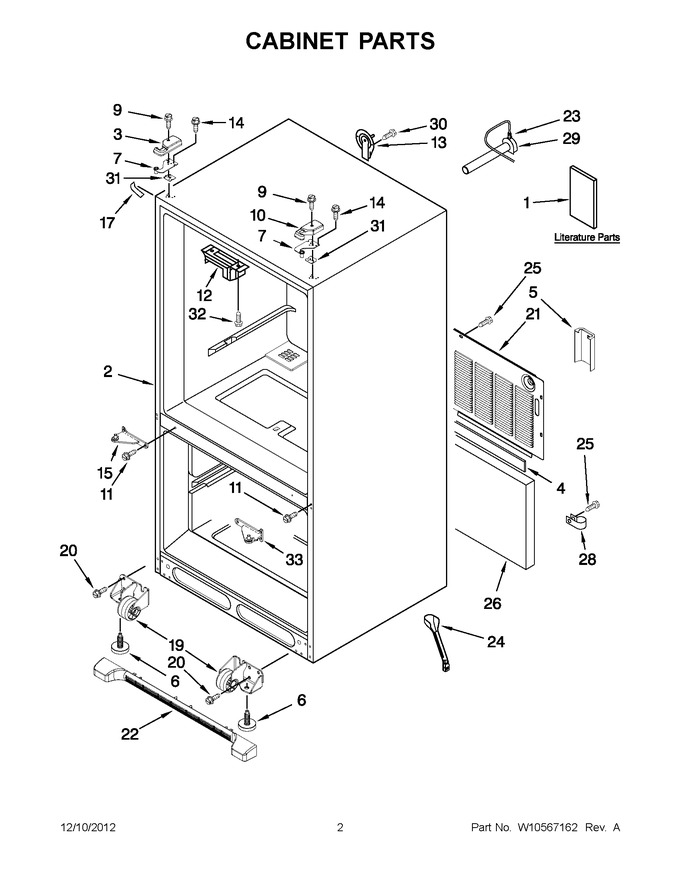

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10366204 | Use & Care Guide |
|
- | |||||
| 1 | W10517966N | Tech Sheet |
|
- | |||||
| 1 | W10187810 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Left Hinge (black) (Replaces: W10337647N) |
|
Immediately | $ 21.00 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | W10208592 | Cover, Valve |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | W11592374 | Top Hinge (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 28.71 | ||||
| 7 | W11592375 | Top Hinge (left Hand) (Replaces: 12963204ED) |
|
$ 28.73 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302BN) |
|
$ 20.29 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10918164 | Hinge, Center (lt) (black) (Replaces: 13000007ED) |
|
$ 82.38 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 19 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | W10211854 | Cover, Unit |
|
$ 160.53 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561N) |
|
$ 139.11 | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 24 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 41.61 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 28 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 31 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 90.54 | |||||
| 31 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 89.58 | |||||
| 32 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 33 | W10918164 | Hinge, Center (rt) (black) (Replaces: 13000008ED) |
|
$ 82.38 |
