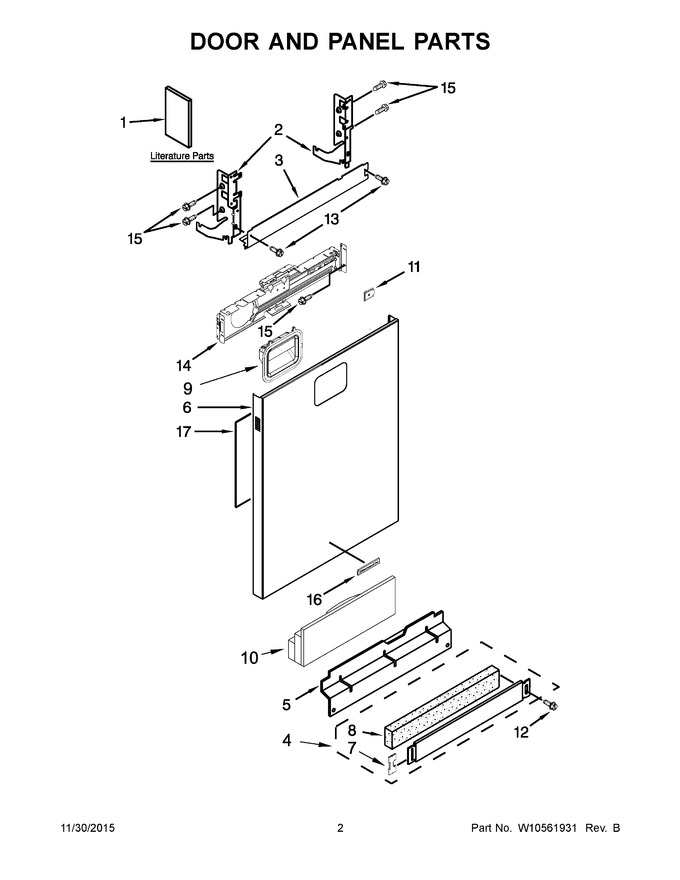

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321447) |
|
Immediately | $ 32.88 | ||||
| 4 | W10871196 | Toe Panel (black) (Replaces: 8558252) |
|
$ 174.04 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 6 | WPW10195724 | Panel, Front (includes Items 9, 11 & 16) (stainless) (Replaces: W10195724) |
|
$ 468.71 | |||||
| 7 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 8 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 43.30 | ||||
| 9 | W10195552 | Handle Assembly (chrome) |
|
$ 153.14 | |||||
| 10 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 43.30 | ||||
| 11 | W10319007 | Light, Pipe |
|
$ 72.00 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 14 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 89.95 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 17 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 1A | W10490723 | Energy Guide |
|
- | |||||
| 1B | W10300929 | Use & Care Guide, English/french |
|
- | |||||
| 1C | W10300597 | Use & Care Guide, Spanish |
|
- | |||||
| 1D | W10455257 | Tech Sheet, English |
|
- | |||||
| 1E | W10455258 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
