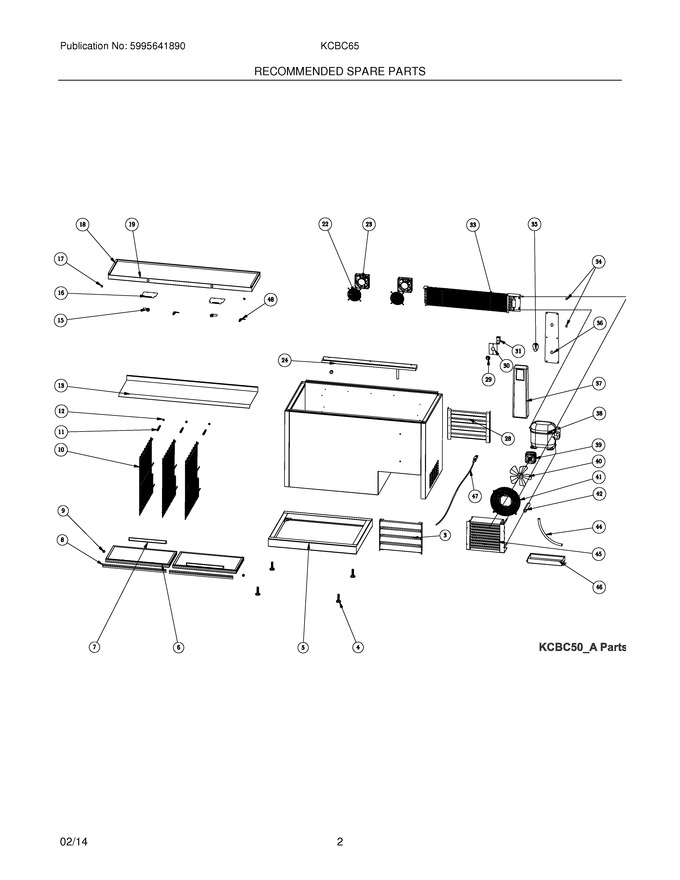

03 - Recommended Spare Parts
04 - Wiring Diagram
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304487418 | Base,cooling System |
|
- | |||||
| 2 | 5304487419 | Base Plate,panel ,bottom |
|
- | |||||
| 3 | 5304493525 | Grille,front Louver ,vent |
|
- | |||||
| 3 | 5304487420 | Grille,front Louver ,vent |
|
- | |||||
| 4 | 5304493526 | Foot,leveling Screw ,adjustable |
|
- | |||||
| 4 | 5304487421 | Foot,leveling Screw ,adjustable |
|
- | |||||
| 5 | 5304493528 | Base,cabinet |
|
- | |||||
| 6 | 5304487502 | Lid |
|
- | |||||
| 6 | 5304493530 | Lid |
|
- | |||||
| 7 | 5304487426 | Handle,lid |
|
- | |||||
| 7 | 5304493261 | Handle,door |
|
- | |||||
| 9 | 5304487437 | Detent,door Travel ,limiter |
|
- | |||||
| 9 | 5304493532 | Detent,travel Limiter ,lid |
|
- | |||||
| 10 | 5304487446 | Divider,vertical |
|
- | |||||
| 10 | 5304493533 | Divider,vertical |
|
- | |||||
| 11 | 5304487448 | Spring,divider |
|
- | |||||
| 11 | 5304493534 | Spring,divider |
|
- | |||||
| 12 | 5304493535 | End Cap,divider |
|
- | |||||
| 12 | 5304487453 | End Cap,divider |
|
- | |||||
| 13 | 5304487504 | Panel,under Table |
|
- | |||||
| 13 | 5304493537 | Panel,under Table |
|
- | |||||
| 14 | 5304487505 | Frame,cabinet Top |
|
- | |||||
| 15 | 5304487469 | Lock,lid |
|
- | |||||
| 15 | 5304492260 | Lock,door |
|
- | |||||
| 16 | 5304493538 | Base,lock |
|
- | |||||
| 16 | 5304487470 | Base,lock |
|
- | |||||
| 17 | 5304487471 | End Cap,block |
|
- | |||||
| 17 | 5304493539 | End Cap,block |
|
- | |||||
| 18 | 5304493540 | Frame,table |
|
- | |||||
| 18 | 5304487472 | Frame,table |
|
- | |||||
| 19 | 5304493542 | Panel,table |
|
- | |||||
| 19 | 5304487506 | Panel,table Top |
|
- | |||||
| 20 | 5304487474 | Support,evap Cover ,left |
|
- | |||||
| 21 | 5304487507 | Cover,evaporator |
|
- | |||||
| 22 | 5304487476 | Cover,fan Assembly ,evaporator |
|
- | |||||
| 22 | 5304493485 | Grille,fan Cover ,evaporator |
|
- | |||||
| 24 | 5304493547 | Pan,defrost Drain ,evaporator |
|
- | |||||
| 24 | 5304487508 | Pan,defrost Drain ,evaporator |
|
- | |||||
| 26 | 5304487479 | Support,evap Cover ,right |
|
- | |||||
| 27 | 5304487480 | Block,door Travel ,back Limit |
|
- | |||||
| 28 | 5304493629 | Panel,service Access ,rear |
|
- | |||||
| 28 | 5304487481 | Panel,service Access ,rear |
|
- | |||||
| 29 | 5304487482 | Knob,control |
|
- | |||||
| 29 | 5304493114 | Knob,temp Controller ,rotary |
|
- | |||||
| 30 | 5304487483 | Panel,controller |
|
- | |||||
| 30 | 5304493630 | Panel,controller |
|
- | |||||
| 32 | 5304487485 | Panel,control Mount |
|
- | |||||
| 34 | 5304487487 | Opener,bottle |
|
- | |||||
| 34 | 5304493634 | Screw,bottle Opener |
|
- | |||||
| 35 | 5304493635 | Opener,bottle |
|
- | |||||
| 35 | 5304487488 | Screw |
|
- | |||||
| 36 | 5304487489 | Base,bottle Opener |
|
- | |||||
| 36 | 5304493636 | Base,bottle Opener |
|
- | |||||
| 37 | 5304487490 | Cover,bottle Opener |
|
- | |||||
| 37 | 5304493637 | Cover,bottle Opener |
|
- | |||||
| 41 | 5304487494 | Cover,fan Assembly ,condenser |
|
- | |||||
| 41 | 5304492272 | Cover,condenser Fan |
|
- | |||||
| 43 | 5304487496 | Holder,drier-filter |
|
- | |||||
| 44 | 5304487497 | Tube,defrost Drain |
|
- | |||||
| 46 | 5304487499 | Pan,defrost Drain ,condenser |
|
- | |||||
| 46 | 5304493109 | Pan,drain ,condenser |
|
- | |||||
| 48 | 5304492341 | Key,door Lock |
|
- | |||||
| F23 | 5304492231 | Fan Assy,evaporator ,with Motor |
|
- | |||||
| F23 | 5304487477 | Fan Assy,evaporator ,with Motor |
|
- | |||||
| F31 | 5304493158 | Control,temperature |
|
$ 171.33 | |||||
| F31 | 5304487484 | Controller,main |
|
- | |||||
| F33 | 5304487509 | Evaporator |
|
- | |||||
| F33 | 5304493633 | Evaporator |
|
- | |||||
| F38 | 5304493171 | Compressor |
|
- | |||||
| F38 | 5304487510 | Compressor |
|
- | |||||
| F39 | 5304487492 | Motor,condenser Fan |
|
- | |||||
| F39 | 5304492359 | Motor,condenser Fan |
|
- | |||||
| F40 | 5304487493 | Fan Blade,condenser Fan |
|
- | |||||
| F40 | 5304492273 | Fan Blade,condenser Fan |
|
- | |||||
| F42 | 5304492275 | Filter-drier |
|
$ 84.74 | |||||
| F42 | 5304487495 | Drier-filter |
|
- | |||||
| F44 | 5304493401 | Tube,drain ,16 Mm Dia |
|
- | |||||
| F45 | 5304487511 | Condenser |
|
- | |||||
| F45 | 5304492269 | Condenser |
|
- | |||||
| F47 | 5304493100 | Power Cord,electric ,115 V |
|
- | |||||
| F47 | 5304487500 | Power Cord,electric |
|
- | |||||
| F8 | 5304493531 | Gasket,lid ,seal |
|
- | |||||
| F8 | 5304487503 | Gasket,lid |
|
- | |||||
| FNI | 5304493174 | Overload |
|
- | |||||
| FNI | 5304493173 | Relay/starter |
|
- | |||||
| FNI | 5304493032 | Capacitor,start |
|
- |
