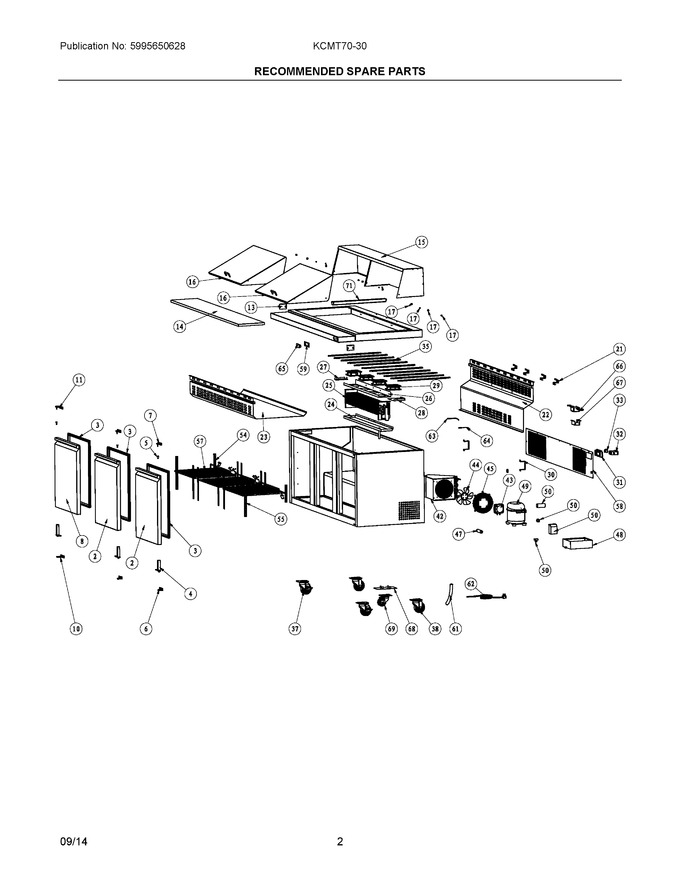

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304493406		Door, Right/middle		Appelez-nous	-
3	5304493407		Gasket, Door Seal				$ 101.06
4	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
5	5304493360		Hinge Pin, Door, Upper		Appelez-nous	-
6	5304493361		Hinge, Door, Bottom Right		Appelez-nous	-
7	5304493362		Hinge, Door, Upper Right		Appelez-nous	-
8	5304493408		Door, Left Side		Appelez-nous	-
10	5304493409		Hinge, Door, Bottom Left		Appelez-nous	-
11	5304493410		Hinge, Door, Top Left		Appelez-nous	-
13	5304493363		Bracket, Cutting Board		Appelez-nous	-
14	5304493522		Board, Cutting		Appelez-nous	-
15	5304496569		Hood, Lid		Appelez-nous	-
16	5304496572		Lid, Right/left		Appelez-nous	-
17	5304493386		Hinge Kit, Hood		Appelez-nous	-
21	5304493368		Support, Air Vent		Appelez-nous	-
22	5304493580		Cover, Evaporator		Appelez-nous	-
23	5304493582		Cover, Air Return		Appelez-nous	-
24	5304493583		Pan, Defrost Drain, Evaporator		Appelez-nous	-
25	5304493584		Evaporator		Appelez-nous	-
26	5304493586		Panel, Fan Motor Mount		Appelez-nous	-
27	5304493588		Support, Evaporator, Left Side		Appelez-nous	-
28	5304493590		Support, Evaporator, Right Side		Appelez-nous	-
29	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
30	5304493382		Bracket, Stand Off		Appelez-nous	-
31	5304493383		Control Box		Appelez-nous	-
32	5304492240		Controller, Temp, (carel)		Appelez-nous	-
33	5304492248		Switch, Power				$ 59.61
35	5304493390		Bracket, End Pan, 25 Mm		Appelez-nous	-
37	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
38	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
42	5304493455		Condenser		Appelez-nous	-
43	5304492359		Motor, Condenser Fan		Appelez-nous	-
44	5304493456		Fan Blade, Condenser Fan				$ 59.01
45	5304493105		Grille, Fan Cover, Condenser		Appelez-nous	-
47	5304492275		Filter-drier				$ 84.74
48	5304493457		Pan, Drain, Condensate		Appelez-nous	-
49	5304496573		Compressor (nek6214z)		Appelez-nous	-
50	5304496574		Electrical Parts, Compressor		Appelez-nous	-
54	5304493396		Pilaster, Shelf Mount, 2 Screw		Appelez-nous	-
55	5304493397		Pilaster, Shelf Mount, 3 Screw		Appelez-nous	-
57	5304493593		Shelf		Appelez-nous	-
58	5304493594		Panel, Svce Access, Rear		Appelez-nous	-
59	5304493400		Plate, Temp Display		Appelez-nous	-
61	5304493401		Tube, Drain, 16 Mm Dia		Appelez-nous	-
62	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
63	5304492340		Probe, Temp Controller				$ 77.21
64	5304493402		Probe, Temp Display, Fahrenheit		Appelez-nous	-
65	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
66	5304493077		Transformer, Temp Display				$ 84.74
67	5304493403		Bracket, Transformer		Appelez-nous	-
68	5304493595		Support, Small Caster, Middle		Appelez-nous	-
69	5304493596		Caster, Small, Middle, W/o Brake		Appelez-nous	-
71	5304496576		Beam, Top Board		Appelez-nous	-
