SELECT A DIAGRAM

01 - Top And Cabinet Parts

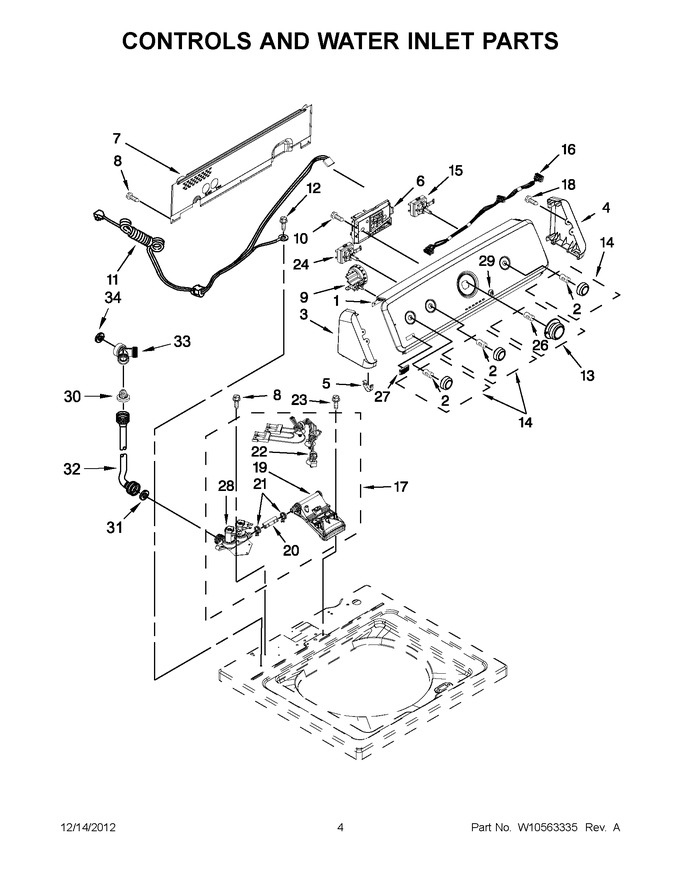

02 - Controls And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365085		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 74.39
4	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 74.72
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10480677		Control Unit Assembly				$ 458.86
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 263.85
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10268911		Switch, Water Level   (Replaces: W10268911)			Immediately	$ 190.65
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10422755		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10317454		Knob, Timer (grey)   (Replaces: W10317454)				$ 63.47
14	WPW10317455		Knob, Control (grey)   (Replaces: W10317455)				$ 63.33
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
16	W10291175		Harness, Upper				$ 171.94
17	WPW10345523		Inlet Assembly, Water   (Replaces: W10345523)				$ 209.74
18	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 90.33
20	W10238347		Hose, Vacuum Break				$ 25.86
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.82
22	WPW10344775		Harness, Valve   (Replaces: W10344775)				$ 171.51
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
24	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
26	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
27	W10323734		Badge, Assembly				$ 63.95
28	WPW10339585		Valve, Water Mixing   (Replaces: W10339585)				$ 235.76
29	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 76.00
30	285452A		Washer, Filter   (Replaces: 353362)			Immediately	$ 9.69
31	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 8.16
32	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
32	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 24.09
33	WPW10269488		Connector, Hose Y   (Replaces: W10269488)				$ 89.64
34	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 11.56
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 21.75
NI	N/P		Parts Not Shown		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04

    View Diagram in Separate Window       Print Part List
