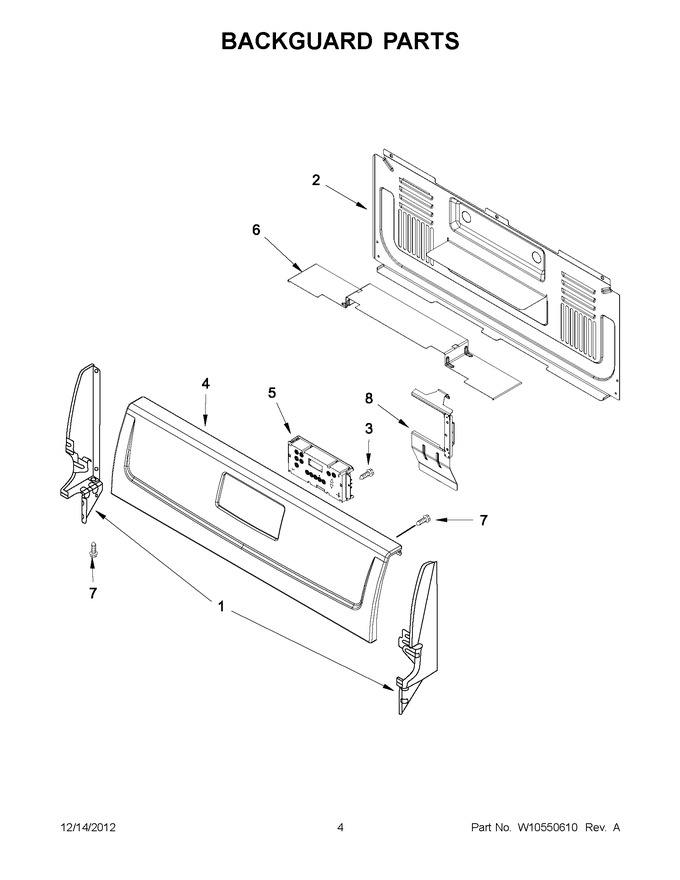

02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98005336 | Endcap (white (left Hand)) |
|
$ 92.33 | |||||
| 1 | 98004632 | Endcap (black (left Hand)) |
|
$ 88.90 | |||||
| 1 | 98005337 | Endcap (white (right Hand)) |
|
$ 92.42 | |||||
| 1 | 98004633 | Endcap (black (right Hand)) |
|
$ 90.45 | |||||
| 2 | 98006083 | Backguard, Rear |
|
- | |||||
| 3 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 7.55 | |||||
| 4 | W10296475 | Panel, Control (white) |
|
- | |||||
| 4 | W10296474 | Panel, Control (black) |
|
- | |||||
| 4 | W10296476 | Panel, Control (stainless) |
|
- | |||||
| 5 | W10310969 | Control, Electronic (white (lcc90)) |
|
- | |||||
| 6 | W10120794 | Deflector, Rear Cover |
|
- | |||||
| 7 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 7.55 | |||||
| 8 | 98018143 | Bracket, Timer (right Hand) |
|
- | |||||
| 8 | 98018144 | Bracket, Timer (left Hand) |
|
- |
