01 - Cover Sheet
02 - Cooktop Parts

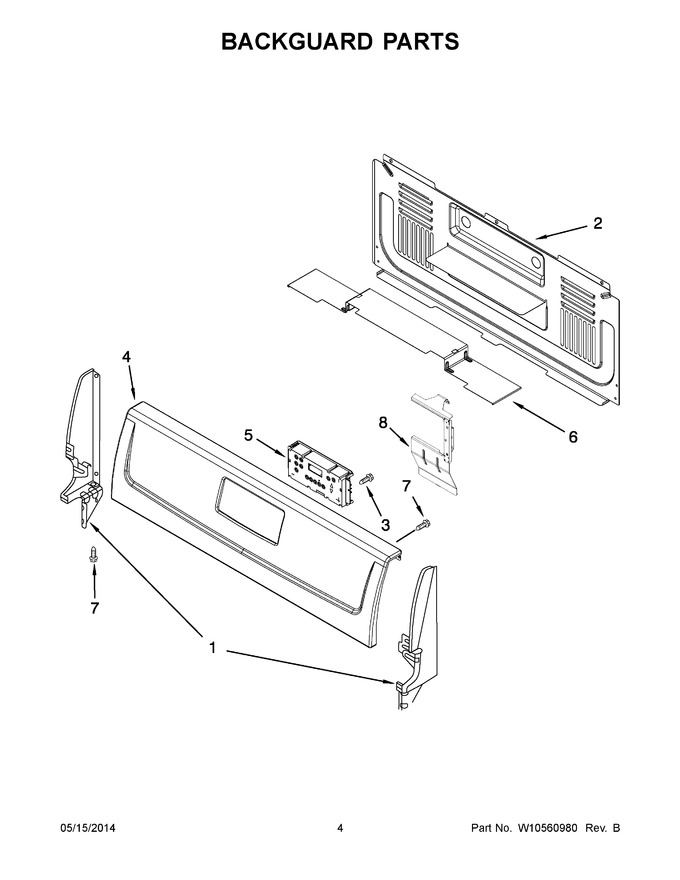

03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Oven And Broiler Parts
08 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98005336 | Endcap (white (left Hand)) |
|
$ 92.33 | |||||
| 1 | 98005337 | Endcap (white (right Hand)) |
|
$ 92.42 | |||||
| 1 | 98008274 | Endcap (biscuit (left Hand)) |
|
- | |||||
| 1 | 98008275 | Endcap (biscuit (right Hand)) |
|
- | |||||
| 1 | 98004632 | Endcap (black (left Hand)) |
|
$ 88.90 | |||||
| 1 | 98004633 | Endcap (black (right Hand)) |
|
$ 90.45 | |||||
| 2 | 98006083 | Backguard, Rear |
|
- | |||||
| 3 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 7.55 | |||||
| 4 | WPW10181005 | Panel, Control (white) (Replaces: W10181005) |
|
$ 334.50 | |||||
| 4 | W10181006 | Panel, Control (black) |
|
- | |||||
| 4 | W10181007 | Panel, Control (biscuit) |
|
- | |||||
| 5 | WPW10335164 | Control, Electronic (white (lcc90)) (Replaces: W10335164) |
|
$ 491.56 | |||||
| 5 | WPW10335166 | Control, Electronic (biscuit (lcc90)) (Replaces: W10335166) |
|
$ 372.91 | |||||
| 5 | WPW10312660 | Control, Electronic (black (lcc90)) (Replaces: W10312660) |
|
$ 441.96 | |||||
| 6 | W10120794 | Deflector, Rear Cover |
|
- | |||||
| 7 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 7.55 | |||||
| 8 | 98018144 | Bracket, Timer (left Hand) |
|
- | |||||
| 8 | 98018143 | Bracket, Timer (right Hand) |
|
- |
