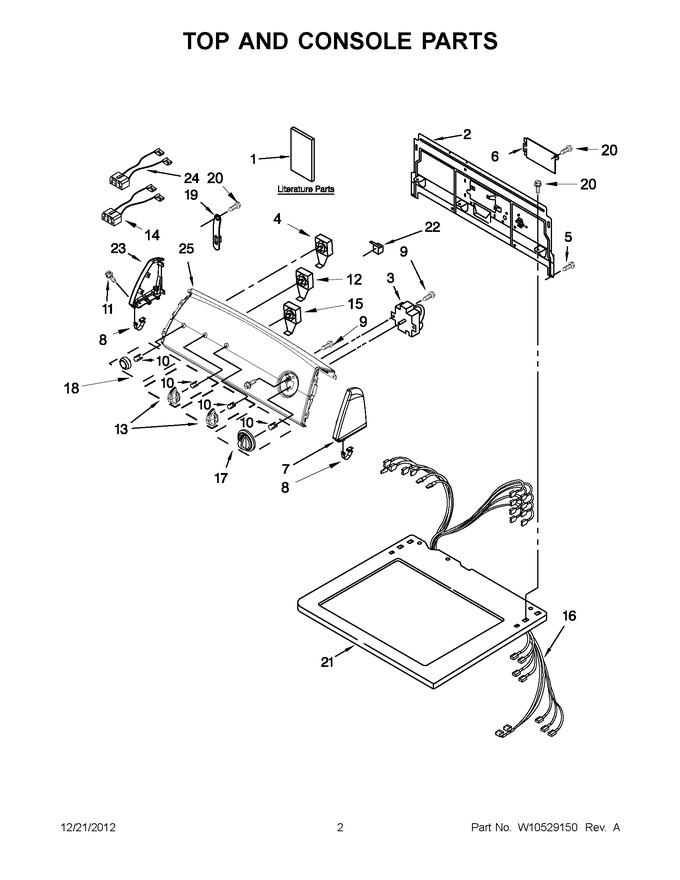

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10454272		Installation Instructions		Appelez-nous	-
1	W10396186		Wiring Diagram		Appelez-nous	-
1	W10462986		Use And Care Guide		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 261.42
3	WPW10116281		Timer   (Replaces: 8299769)				$ 326.21
4	W10238464		Switch, Push-to-start		Appelez-nous	-
5	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
6	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
7	WP8565954		End Cap (r.h.) (white)   (Replaces: 8565954)				$ 65.84
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
11	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
12	W10168170		Switch, Temperature				$ 206.68
13	W10034380		Knob, Control (white/metallic)				$ 25.06
14	W10135015		Wire, Jumper Assembly		Appelez-nous	-
15	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
16	W10450297		Wiring Harness, Main		Appelez-nous	-
17	W10034750		Knob, Timer (white/metallic)				$ 28.27
18	WPW10034790		Knob, Push-to-start (white)   (Replaces: W10034790)				$ 57.81
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
21	8559781		Top (white)		Appelez-nous	-
22	8522378		Buzzer, Mini		Appelez-nous	-
23	WP8565957		End Cap (l.h.) (white)   (Replaces: 8565957)				$ 64.76
24	W10128691		Wire, Jumper (guard On/off)		Appelez-nous	-
25	W10492150		Console (white)		Appelez-nous	-
