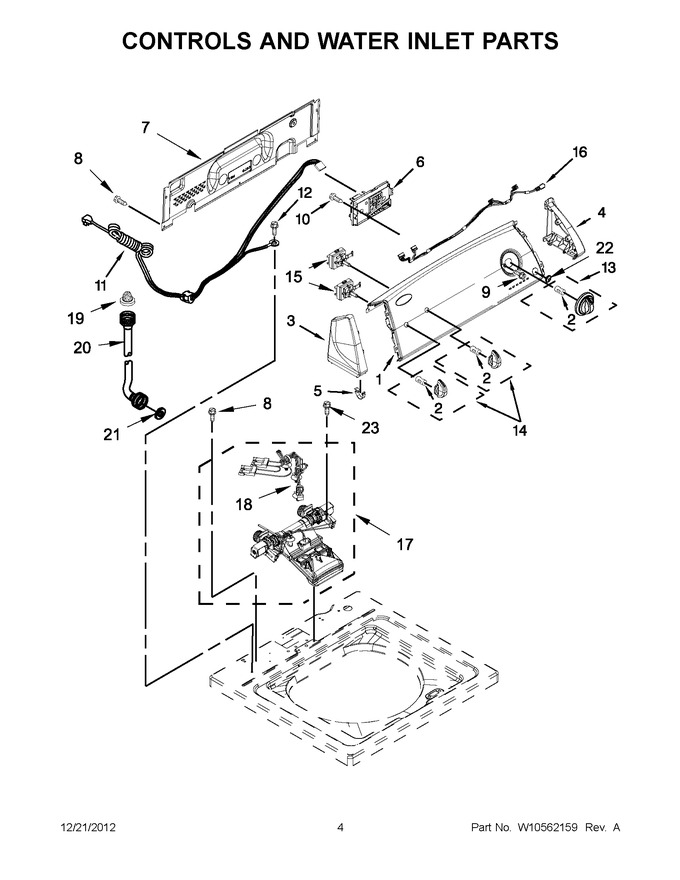

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10465109		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
4	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10538239		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
9	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 147.07
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W10034750		Knob, Timer (white/metallic)				$ 28.27
14	W10034380		Knob, Control (white/metallic)				$ 25.06
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
16	W10537670		Harness, Upper				$ 30.53
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10472844)				$ 194.84
18	W10876654		Harness, Valve   (Replaces: W10423127)				$ 175.43
19	285452A		Washer, Filter   (Replaces: 353362)			Immediately	$ 8.72
20	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 21.68
20	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 21.68
21	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 7.34
22	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 68.40
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63

    View Diagram in Separate Window       Print Part List
