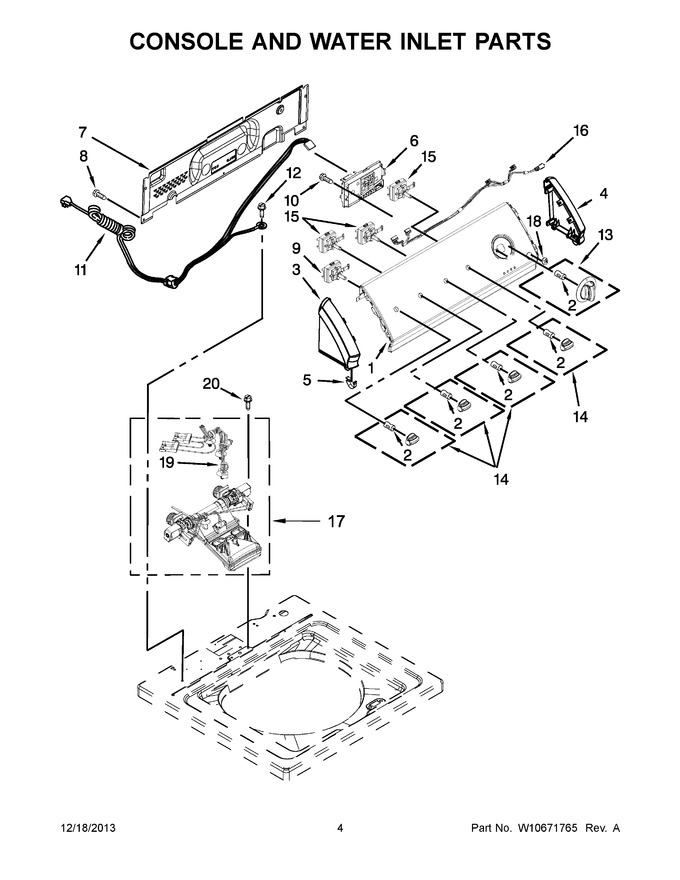

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10607397 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WP8559502 | End Cap (left) (white) (Replaces: 8559502) |
|
$ 69.51 | |||||
| 4 | WP8559501 | End Cap (right) (white) (Replaces: 8559501) |
|
$ 69.30 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10661845 | Control Unit Assembly |
|
$ 273.93 | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 343.27 | ||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.19 | ||||
| 9 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 181.40 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 155.63 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W10317457 | Assembly, Timer Knob (grey) |
|
- | |||||
| 14 | W10317458 | Assembly, Control Knob (grey) |
|
- | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 173.43 | ||||
| 16 | WPW10291176 | Harness, Upper (Replaces: W10291176) |
|
$ 165.04 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10423125) |
|
Immediately | $ 81.56 | ||||
| 18 | W10272474 | Pushbutton, Start |
|
- | |||||
| 19 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 185.64 | |||||
| 20 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.19 |
