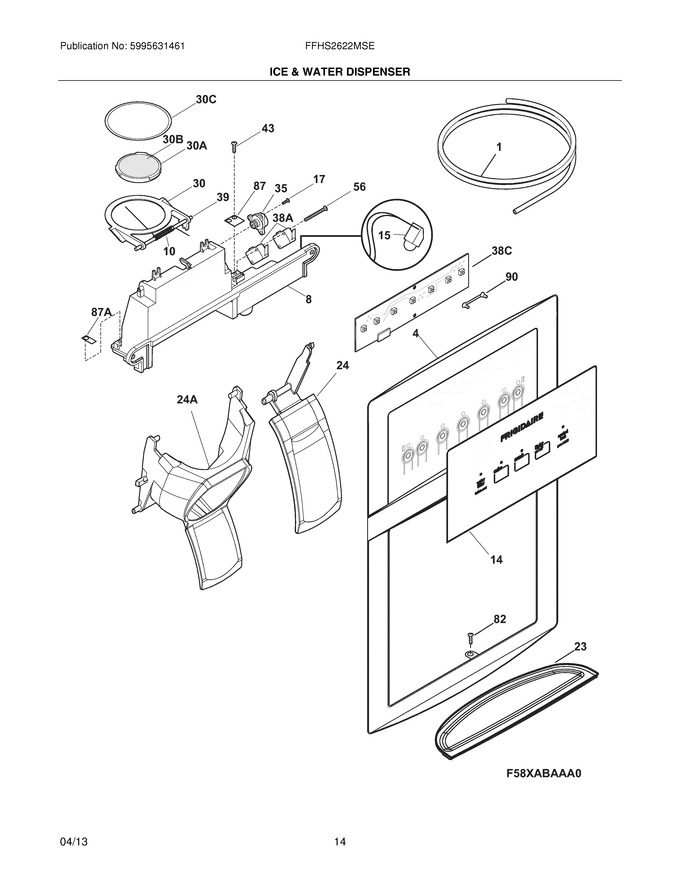

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,60`` ,natural ,door |
|
Immediately | $ 66.94 | ||||
| 4 | 808048105 | Cover Assembly,black (Replaces: 242097903) |
|
$ 98.02 | |||||
| 8 | 242083403 | Module-dispenser |
|
$ 186.95 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 23.63 | ||||
| 14 | 242083003 | Label-module Cover,black |
|
$ 79.54 | |||||
| 17 | 241679801 | Screw |
|
$ 15.75 | |||||
| 23 | 241947003 | Drip Tray,black |
|
$ 25.99 | |||||
| 24 | 242083603 | Actuator-water,black |
|
$ 71.87 | |||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 55.13 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 78.36 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 48.04 | |||||
| 43 | 215296301 | Screw,plask H/l ,no.6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch,pan Head |
|
$ 14.96 | |||||
| 82 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| 87 | 241688302 | Bearing Plate |
|
$ 22.05 | |||||
| 90 | 241732703 | Light Pipe,reflector |
|
- | |||||
| 24A | 242083503 | Actuator-ice,black |
|
$ 127.58 | |||||
| 30A | 241688501 | Door Center |
|
$ 58.85 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 70.19 | |||||
| 30C | 241688701 | Door Seal |
|
$ 44.95 | |||||
| 87A | 241688301 | Bearing Plate |
|
$ 22.05 | |||||
| F15 | 242065203 | Light-led (Replaces: 242070901) |
|
$ 114.98 | |||||
| F38A | 242065203 | Harness-wiring (Replaces: 242065201) |
|
$ 114.98 | |||||
| F38A | 241689106 | Switch-micro,single Pole ,double Throw (Replaces: 241689101) |
|
Immediately | $ 9.56 | ||||
| F38C | 242053503 | Board-control |
|
Immediately | $ 298.29 | ||||
| FNI | 5304521768 | Harness,wiring ,dispenser Door (Replaces: 242207001) |
|
$ 42.53 | |||||
| NI | 218976419 | Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door |
|
$ 25.20 | |||||
| NI | 218976429 | Tube-water Inlet,5/16 - 97.50`` ,brown/tan |
|
$ 44.89 | |||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 22.84 |
