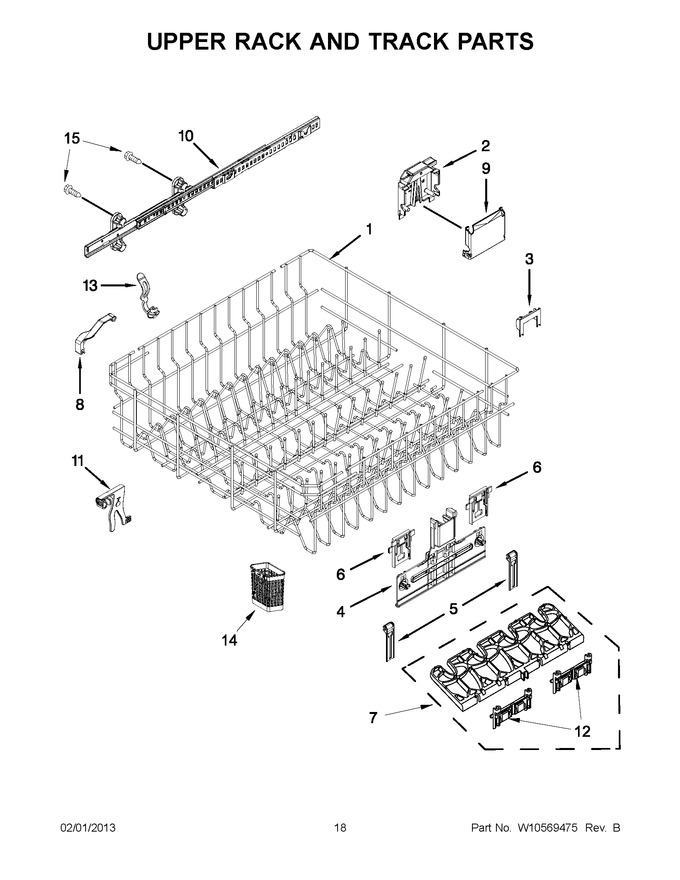

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10350382) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10195372 | Housing, Adjuster (left Hand) (Replaces: W10195372) |
|
Immediately | $ 120.71 | ||||
| 2 | WPW10195373 | Housing, Adjuster (right Hand) (Replaces: W10195373) |
|
$ 83.52 | |||||
| 3 | WPW10250160 | Clip Adjuster (Replaces: W10250160) |
|
Immediately | $ 40.55 | ||||
| 4 | WPW10546503 | Adjuster Assembly (Replaces: W10306646) |
|
Immediately | $ 43.81 | ||||
| 5 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 30.81 | ||||
| 6 | WPW10195840 | Position, Adjuster (Replaces: W10195840) |
|
Immediately | $ 51.32 | ||||
| 7 | W11125975 | Cupshelf Assembly (Replaces: 8562029) |
|
$ 140.19 | |||||
| 8 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 31.56 | |||||
| 9 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 7.61 | ||||
| 10 | W11259786 | Track, Assembly (right Hand) (Replaces: W10462358) |
|
Immediately | $ 84.94 | ||||
| 10 | W11259785 | Track, Assembly (left Hand) (Replaces: W10462359) |
|
Immediately | $ 78.80 | ||||
| 11 | WPW10158385 | Clip, Stemware (Replaces: W10158385) |
|
Immediately | $ 8.23 | ||||
| 12 | 8562026 | Clip, Cupshelf |
|
$ 101.18 | |||||
| 13 | W10372814 | Clip, Lite Item |
|
$ 28.80 | |||||
| 14 | WPW10482109 | Basket, Utensil (Replaces: W10482109) |
|
$ 93.86 | |||||
| 15 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 76.86 |
