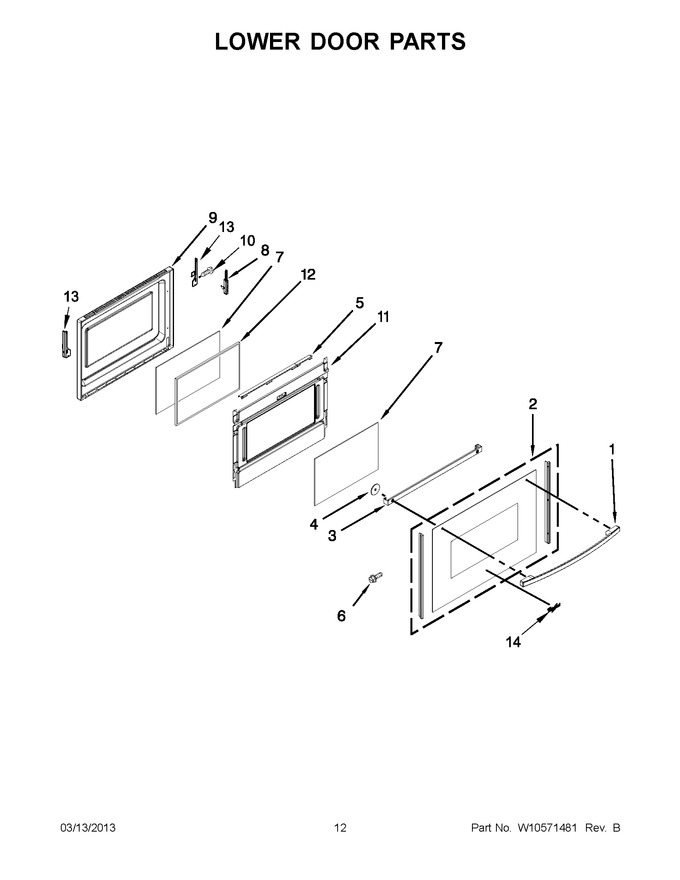

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
1	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
1	WPW10323589		Handle, Door (black)   (Replaces: W10323589)			Immediately	$ 238.78
2	W10346115		Assembly, Glass Door (white)				$ 147.96
2	W10346113		Assembly, Glass Door (black)		Appelez-nous	-
2	W10346125		Assembly, Glass Door (stainless)				$ 208.20
3	WPW10294695		Bracket, Handle (black)   (Replaces: W10294695)				$ 147.02
4	7109P084-60		Washer, Fiber		Appelez-nous	-
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
6	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335433		Hinge, Door Right   (Replaces: W10335433)				$ 104.99
8	WPW10335434		Hinge, Door Left   (Replaces: W10335434)			Immediately	$ 102.90
9	WPW10272698		Lining, Door   (Replaces: W10272698)				$ 345.72
10	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
11	W10340464		Retainer, Insulation				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272328		Receiver, Right   (Replaces: W10272328)				$ 90.04
13	WPW10272329		Receiver, Left   (Replaces: W10272329)				$ 81.11
14	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
14	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13

    View Diagram in Separate Window       Print Part List
