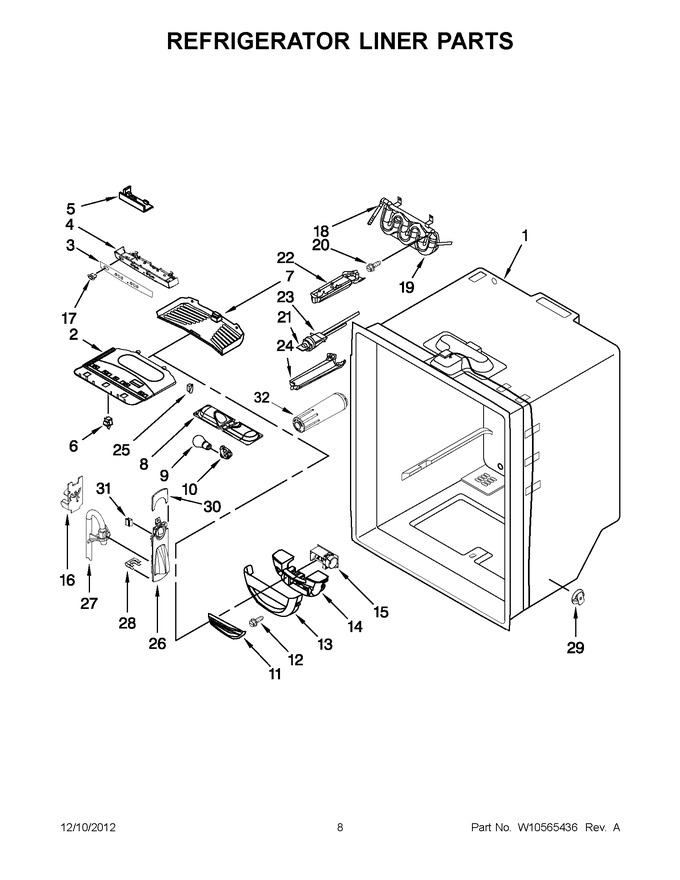

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 107.02 | |||||
| 3 | W10316011 | Overlay, Control |
|
$ 39.25 | |||||
| 4 | W11478401 | Module, Control (Replaces: W10464775) |
|
Immediately | $ 224.33 | ||||
| 5 | WPW10503278 | Control, Electronic (Replaces: W10503278) |
|
Immediately | $ 56.16 | ||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 35.18 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501N) |
|
$ 95.42 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | W11679940 | Bulb, Light (Replaces: W10311505N) |
|
Immediately | $ 10.17 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation-damper (Replaces: 13012402) |
|
$ 45.14 | |||||
| 15 | WPW10196393 | Damper, Control (Replaces: W10196393) |
|
Immediately | $ 200.47 | ||||
| 16 | 12707303SP | Plate-dispenser (Replaces: 12707303) |
|
$ 72.38 | |||||
| 17 | W11478401 | Switch, Energy Saver (Replaces: 12861601) |
|
Immediately | $ 224.33 | ||||
| 18 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 33.29 | ||||
| 19 | W11229977 | Tank, Water (Replaces: 12706112) |
|
Immediately | $ 162.26 | ||||
| 20 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 21 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 45.65 | ||||
| 22 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 15.08 | ||||
| 23 | W11808483 | Head, Water Filter (Replaces: 12590620) |
|
Immediately | $ 139.39 | ||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 78.08 | ||||
| 25 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 65.12 | |||||
| 26 | 12706909 | Facade, Dispenser |
|
- | |||||
| 27 | W11677725 | Guide, Waterline (Replaces: 12707206) |
|
$ 22.28 | |||||
| 28 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 17.24 | |||||
| 29 | W10190541 | Mount, Crisper Support |
|
$ 11.89 | |||||
| 30 | W11519867 | Facade, Dispenser (Replaces: 12707005) |
|
Immediately | $ 23.72 | ||||
| 31 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 11.83 | |||||
| 32 | EDR4RXD1B | Filter, Water (Replaces: W10336197) |
|
Immediately | $ 49.99 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11478401 | Harness, Controls (refrigerator) (Replaces: W10389967) |
|
Immediately | $ 224.33 |
