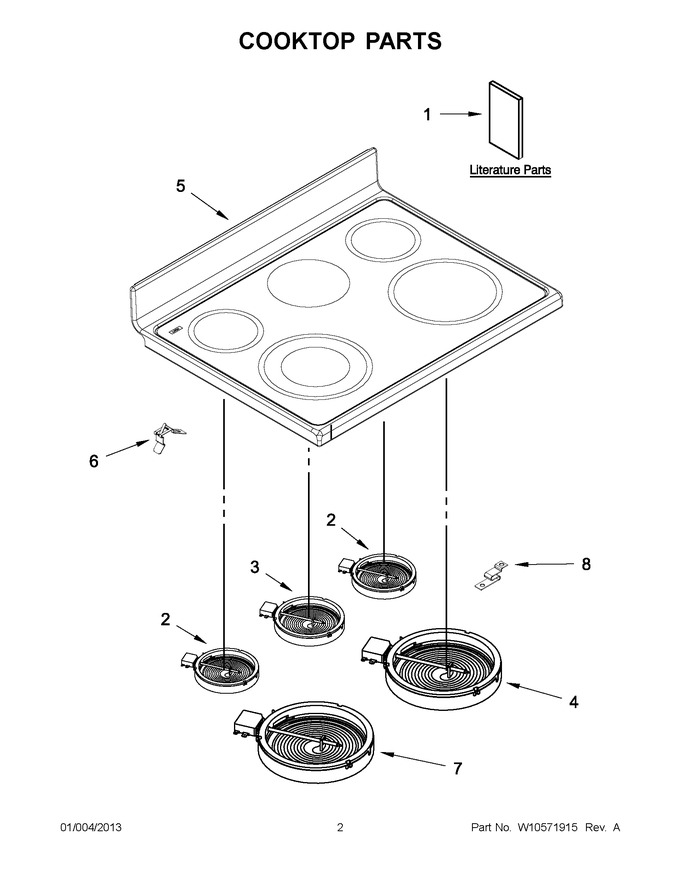

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10430958 | Instructions, Installation |
|
- | |||||
| 1 | W10430937 | Use And Care Guide |
|
- | |||||
| 1 | W10356312 | Tech Sheet (english) |
|
- | |||||
| 1 | W10358498 | Tech Sheet (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safer Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 3 | WP9762851 | Element, Warm Zone (120v) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 4 | WPW10204680 | Element, Dual (2700w) (left Front) (Replaces: W10204680) |
|
Immediately | $ 403.75 | ||||
| 5 | W10260141 | Cooktop (white) |
|
- | |||||
| 5 | W10336325 | Cooktop (black) (Replaces: W10260140) |
|
$ 675.05 | |||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 8 | WPW10260946 | Support, Element (Replaces: W10260946) |
|
$ 135.10 |
