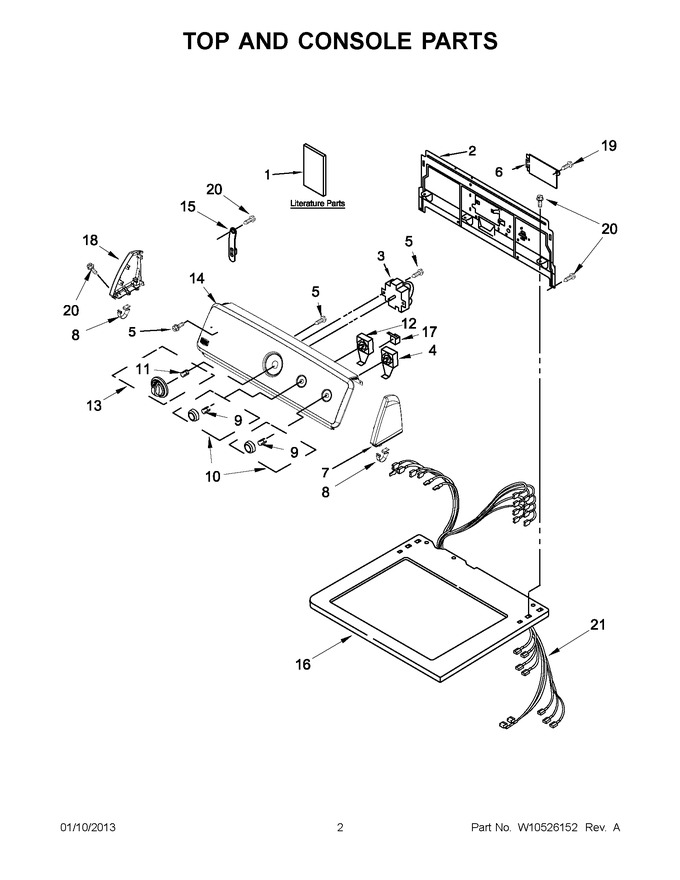

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10536446 | Wiring Diagram |
|
- | |||||
| 1 | W10462987 | Use & Care Guide |
|
- | |||||
| 1 | W10454272 | Installation Instructions |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 261.42 | |||||
| 3 | W10463293 | Timer Assembly (60 Hz.) |
|
- | |||||
| 4 | W10238464 | Switch, Push-to-start |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 7 | W10193823 | End Cap (r.h.) (white) |
|
- | |||||
| 8 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 9 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 10 | WPW10317455 | Knob, Control (grey) (Replaces: W10317455) |
|
$ 63.33 | |||||
| 11 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 12 | W11235848 | Switch, Rotary (Replaces: W10168168) |
|
- | |||||
| 13 | WPW10317454 | Knob, Timer (grey) (Replaces: W10317454) |
|
$ 63.47 | |||||
| 14 | W10474739 | Console (white) |
|
- | |||||
| 15 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 16 | 8559781 | Top (white) |
|
- | |||||
| 17 | W10135122 | Mini Buzzer (non Adjustable) (with Leads) |
|
- | |||||
| 18 | W10193826 | End Cap (l.h.) (white) |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 21 | W10450296 | Main, Wiring Harness |
|
- |
