SELECT A DIAGRAM

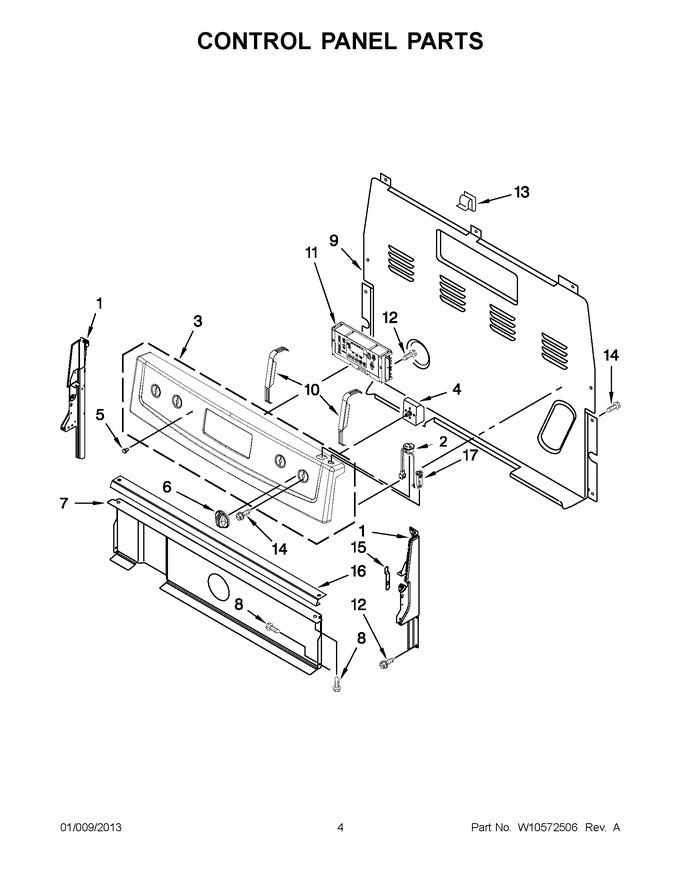

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
2	W10849725		Receptacle (white)   (Replaces: W10203476)			Immediately	$ 111.11
3	W10558050		Panel, Console (white)				$ 58.93
4	WP3148952		Switch, Infinite (yellow) (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	WP3149400		Switch, Infinite (orange) (right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
5	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
6	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 20.65
7	W10134247		Shield, Heat			Immediately	$ 358.82
8	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
9	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
10	W11230932		Bracket, Mounting, Eoc   (Replaces: W10138683)			Immediately	$ 84.81
11	WPW10557734		Control, Range (white)   (Replaces: W10557734)				$ 285.61
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
15	3196200		Clip, Spring				$ 10.45
16	W10525121		Bracket, Console Mounting				$ 98.85
17	WP9757601		Breaker, Circuit (white)   (Replaces: 9757601)			Immediately	$ 65.55

    View Diagram in Separate Window       Print Part List
