SELECT A DIAGRAM

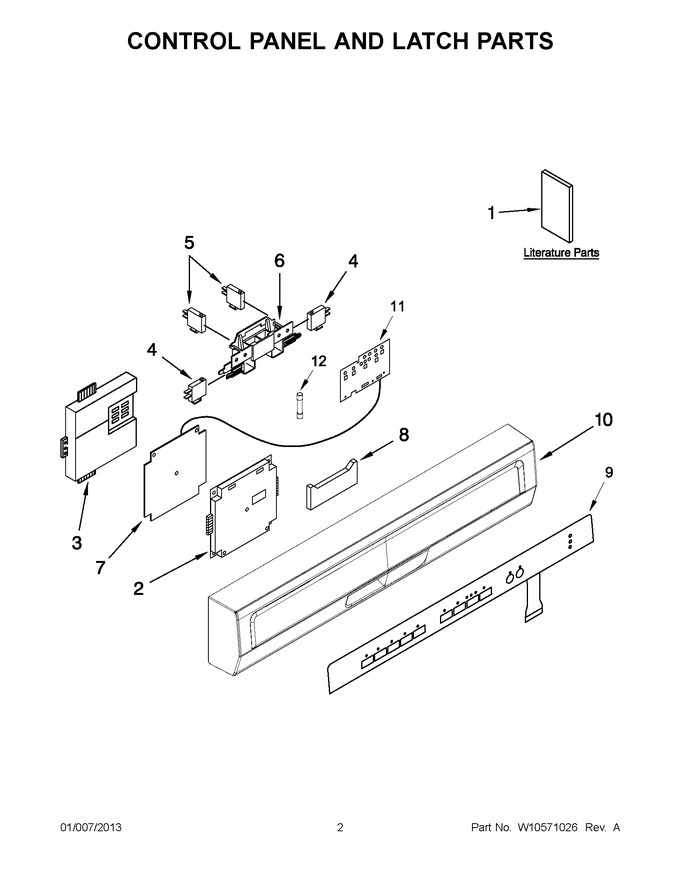

01 - Control Panel And Latch Parts


02 - Tub Parts


03 - Door And Toe Panel Parts


04 - Frame Parts


05 - Pump And Sprayarm Parts


06 - Dishrack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518033		Use & Care Guide		Appelez-nous	-
1	W10518038		Installation Instructions		Appelez-nous	-
2	W10567583		Base, Control Main		Appelez-nous	-
3	W10567584		Cover, Control Main				$ 30.79
4	W10859566		Microswitch   (Replaces: W10567585)				$ 29.97
5	W10567587		Switch, Breakwater (right)				$ 40.68
5	WPW10567586		Switch, Breakwater (left)   (Replaces: W10567586)				$ 62.97
6	W10567588		Bolt, Latch				$ 40.96
7	W10565690		Control, Electronic Main		Appelez-nous	-
8	W10567590		Handle		Appelez-nous	-
9	W10558073		Overlay (white)		Appelez-nous	-
9	W10558075		Overlay (silver)		Appelez-nous	-
9	W10558074		Overlay (black)		Appelez-nous	-
10	W10558072		Console (black)				$ 145.90
10	WPW10558071		Console (white)   (Replaces: W10558071)				$ 183.06
11	WPW10567589		Control, Electronic Small   (Replaces: W10567589)				$ 295.26
12	W10487251		Fuse				$ 27.35

    View Diagram in Separate Window       Print Part List
