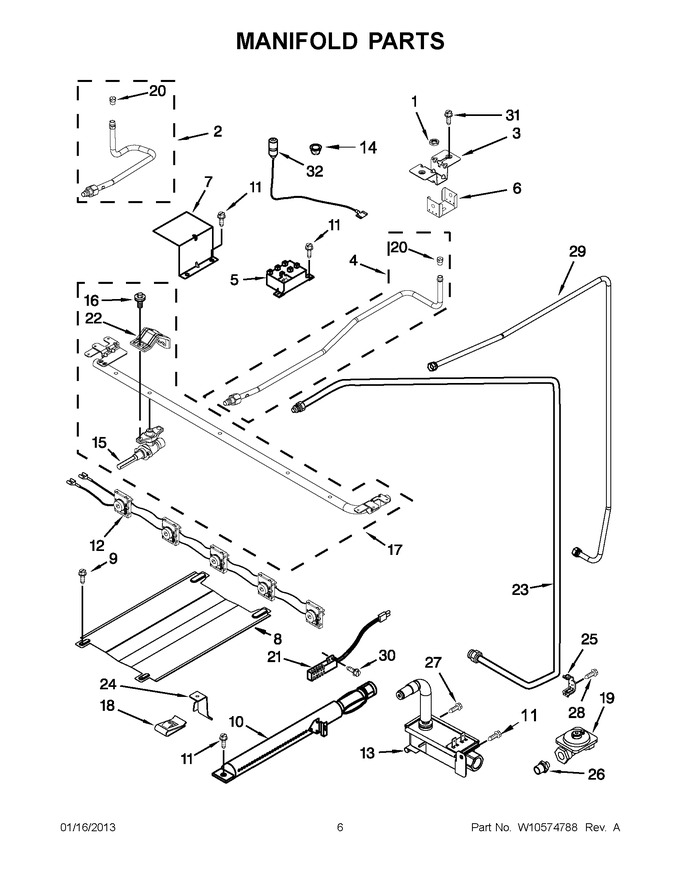

03 - Manifold Parts


04 - Chassis Parts


05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98017323		Nut		Appelez-nous	-
2	WP98017583		Assembly, Tubing (left Front)   (Replaces: 98017583)				$ 168.96
2	WP98017582		Assembly, Tubing (right Front)   (Replaces: 98017582)				$ 160.01
3	WP98017741		Bracket, Venturi   (Replaces: 98017741)				$ 81.34
4	WP98017359		Assembly, Tubing (left Rear / Right Rear)   (Replaces: 98017359)				$ 174.91
5	W11590249		Spark Module   (Replaces: 6610341)				$ 22.06
6	W10306464		Cover, Bracket		Appelez-nous	-
7	98007192		Cover, Module		Appelez-nous	-
8	98015099		Spread, Flame (bake)				$ 255.47
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 13.25
10	WP98012138		Burner, Oven   (Replaces: 98012138)				$ 210.98
11	W10837731		Screw   (Replaces: 98006633)				$ 7.47
12	WPW10361492		Harness, Switch   (Replaces: W10361492)				$ 190.59
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 148.82
14	WPW10278150		Clip, Ignitor   (Replaces: W10278150)				$ 40.61
15	WPW10141709		Valve, Saddle   (Replaces: W10141709)			Immediately	$ 217.68
16	98017517		Screw		Appelez-nous	-
17	W10145011		Assembly, Manifold		Appelez-nous	-
18	98009179		U-nut				$ 12.63
19	W11346659		Regulator   (Replaces: W10469572)				$ 251.26
20	WP98017349		Orifice, Natural (11.5k) (left Front)   (Replaces: 98017349)				$ 84.65
20	WP98017348		Orifice, Natural (9.5k) (left Rear / Right Rear / Right Front)   (Replaces: 98017348)				$ 82.79
21	W10918546		Igniter, Hot Surface   (Replaces: 98005652)			Immediately	$ 63.63
22	W10421119		Bracket, Saddle		Appelez-nous	-
23	WPW10469571		Tubing (regulator To Oven Valve)   (Replaces: W10469571)				$ 166.14
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8to9/16				$ 116.11
27	98013634		Screw		Appelez-nous	-
28	WP98007225		Screw   (Replaces: 98007225)				$ 6.57
29	WP98017171		Tubing (manifold To Regulator)   (Replaces: 98017171)				$ 244.77
30	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
31	W10837674		Screw   (Replaces: W10146346)				$ 7.25
32	WPW10209656		Ignitor, Top (black)   (Replaces: W10209656)			Immediately	$ 76.73
32	WPW10209657		Ignitor, Top (natural)   (Replaces: W10209657)				$ 50.99
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10032030		Kit, Lp Conversion   (Replaces: W10032030)				$ 101.66
