Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10259062 Door, Freezer Appelez-nous -
2 2317101 Divider, Basket Appelez-nous -
3 W10168937 Mat, Basket Appelez-nous -
4 W10135775 Screw Special Order $ 14.93

5 WP488234 Screw   (Replaces: W10135792) Special Order $ 7.08

6 W10203452 Trim, Side Door Special Order $ 102.63

7 W10203448 Trim, Top And Bottom Door Special Order $ 91.50

8 W11624996 Door Gasket, Magnetic   (Replaces: W10144009) In-Stock Immediately $ 243.72

9 WP8281250 Screw (stainless)   (Replaces: 8281250) Special Order $ 11.42

10 W10258182 Basket Assembly, Freezer Special Order $ 254.40

11 WP2207454 Nut, Hex   (Replaces: 2207454) Special Order $ 11.38

12 W10001190 Washer Special Order $ 8.80

13 W10109030 Screw Special Order $ 15.35


    View Diagram in Separate Window     Print Icon   Print Part List

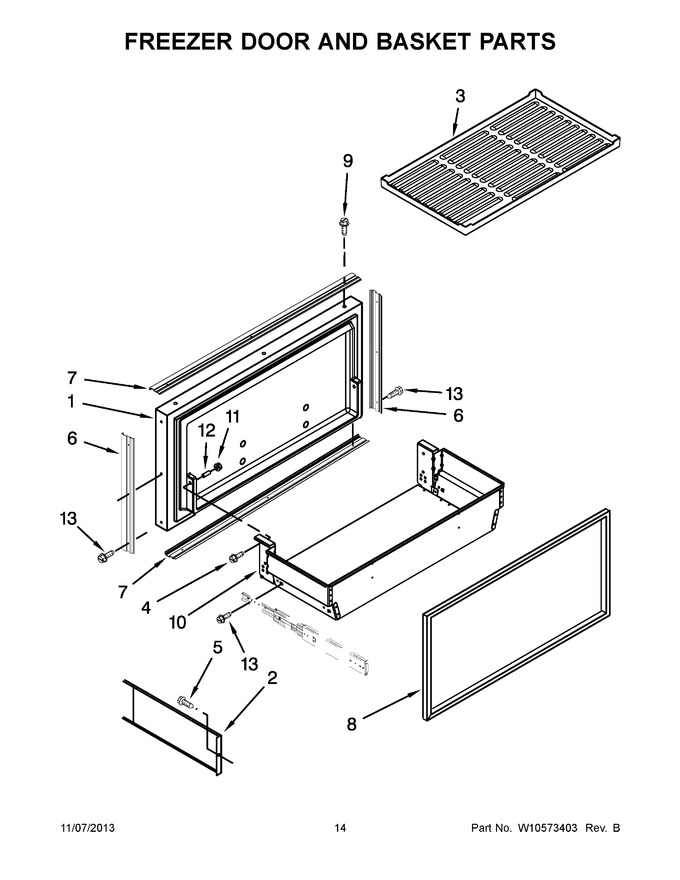

Diagram for JB36NXFXRW04
