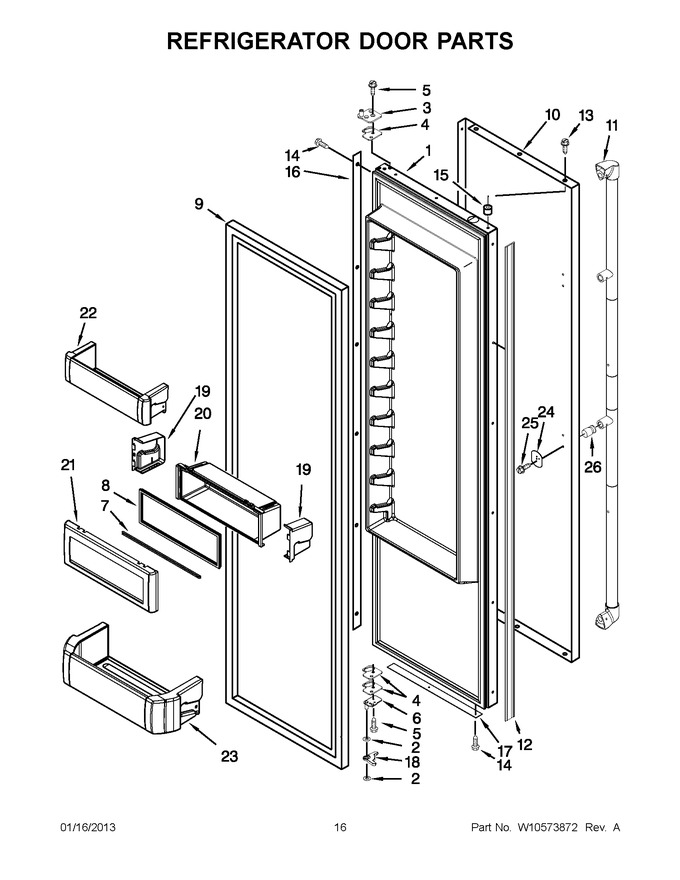

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193491		Refrigerator Door Panel		Appelez-nous	-
2	WP2006346		Washer Extension Arm Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
3	W11673500		Assembly, Top Hinge   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom			Immediately	$ 81.91
7	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 171.14
8	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 171.14
9	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 306.02
10	W10523734		Skin, Door		Appelez-nous	-
11	12859108		Handle, Door				$ 284.63
12	2309060		Spacer Assembly, Door Handle Side		Appelez-nous	-
13	W10759522		Screw   (Replaces: 488568)				$ 7.42
14	WP8281250		Screw   (Replaces: 8281250)				$ 10.28
15	2005433		Spacer, Door-skin (top)				$ 21.00
16	W10142296		Spacer, Door		Appelez-nous	-
17	WP2257343		Spacer, Door (bottom)   (Replaces: 2004935)				$ 78.05
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
19	WPW10323172		Utility Bin Endcap (right Hand)   (Replaces: W10323172)				$ 7.74
19	WPW10323173		Utility Bin Endcap (left Hand)   (Replaces: W10323173)				$ 7.74
20	W11348580		Bin, Utility Center   (Replaces: W10323037)			Immediately	$ 171.14
21	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 171.14
22	W11752086		Bin, Door-shallow   (Replaces: W10323600)				$ 61.37
23	W10323748		Shelf, Door (gallon)				$ 109.60
24	W10127710		Plate, Handle Door			Immediately	$ 23.35
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
26	WPW10153450		Stud, Handle Mounting   (Replaces: W10153450)				$ 78.53

    View Diagram in Separate Window       Print Part List
