SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

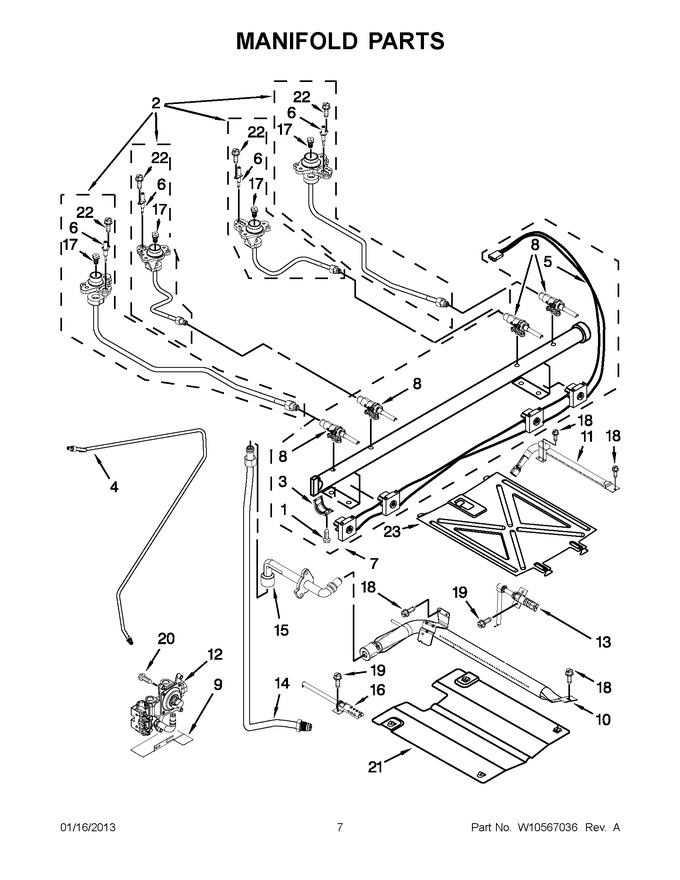

03 - Manifold Parts


04 - Door Parts


05 - Chassis Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	WPW10462934		Orifice, Holder Assembly 15k (left Front)   (Replaces: W10462934)				$ 101.25
2	W10462930		Orifice, Holder Assembly 9.5k (left Rear)		Appelez-nous	-
2	W10462939		Orifice, Holder Assembly 5k (right Rear)		Appelez-nous	-
2	W10462943		Orifice, Holder Assembly 15k (right Front)		Appelez-nous	-
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	WPW10295998		Harness, Manifold   (Replaces: W10295998)				$ 228.23
6	WPW10216419		Electrode   (Replaces: W10216419)			Immediately	$ 36.72
7	W10314241		Assembly, Manifold		Appelez-nous	-
8	WPW10279615		Valve, Saddle 15k (left Front & Right Front)   (Replaces: W10279615)				$ 258.91
8	WPW10247744		Valve, Saddle 5k (right Rear)   (Replaces: W10247744)				$ 280.12
8	WPW10279614		Valve, Saddle 9.5k (left Rear)   (Replaces: W10279614)				$ 279.81
9	W10224921		Bracket - Aegis		Appelez-nous	-
10	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 239.36
11	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
12	WPW10602001		Valve/regulator   (Replaces: W10224914)			Immediately	$ 340.97
13	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 48.07
14	W10420040		Tube, Broiler Supply				$ 194.54
15	W10340259		Fitting, Broiler		Appelez-nous	-
16	WP8054129		Electrode, Broil   (Replaces: 8054129)			Immediately	$ 137.14
17	WPW10170506		Orifice, Burner (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
17	WPW10347414		Orifice, Burner 15k (left Front & Right Front)   (Replaces: W10347414)				$ 90.50
17	WPW10170508		Orifice, Burner (9.5k) (left Rear)   (Replaces: W10170508)				$ 95.21
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
23	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170534		Kit, Lp Conversion   (Replaces: W10170534)				$ 110.89
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
NI	WPW10400498		Orifice, Lp Broil   (Replaces: W10400498)				$ 116.21

    View Diagram in Separate Window       Print Part List
