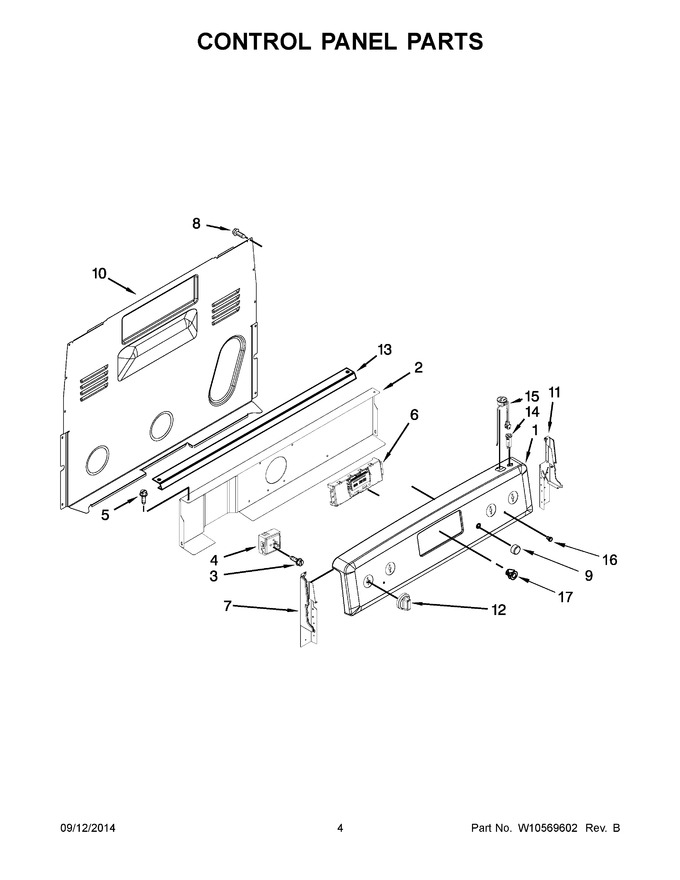

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339453 | Panel, Backguard (stainless) |
|
$ 248.71 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10391743 | Switch, Infinite (left Front) (Replaces: W10391743) |
|
Immediately | $ 123.53 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10586726 | Control (mrc) (Replaces: W10586723) |
|
$ 541.16 | |||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 9 | W10918209 | Button, Keep Warm (stainless) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 12 | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 22.45 | ||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 14 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 16 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 17 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 4A | WPW10411934 | Switch, Infinite (right Front And Left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 4B | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 |
