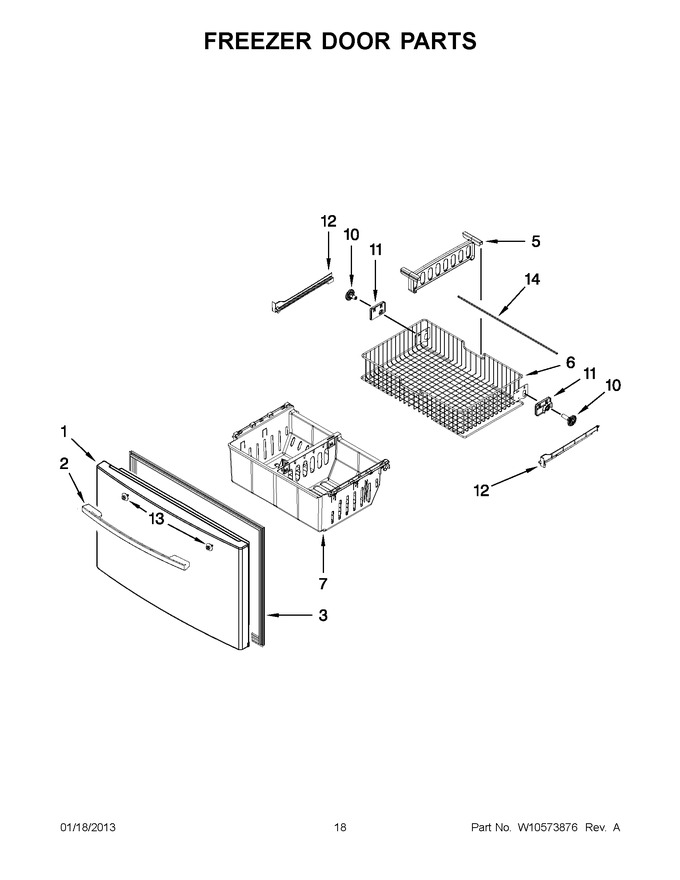

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977863WQ | Freezer Door (white) (Replaces: 12977863W) |
|
$ 889.81 | |||||
| 1 | 12977863BQ | Freezer Door (black) (Replaces: 12977863B) |
|
$ 907.50 | |||||
| 2 | WPW10223023K | Handle, Door (black) (Replaces: W10223023K) |
|
$ 200.66 | |||||
| 2 | W10223022K | Handle, Door (white) |
|
$ 80.97 | |||||
| 3 | WPW10436253 | Gasket, Door (black) (Replaces: W10436253) |
|
$ 360.89 | |||||
| 3 | WPW10443321 | Gasket, Door (white) (Replaces: W10443321) |
|
$ 359.84 | |||||
| 5 | W10146439 | Divider, Upper Basket |
|
$ 32.66 | |||||
| 6 | W11218042 | Basket, Upper (Replaces: W10348249) |
|
$ 203.43 | |||||
| 7 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 181.18 | |||||
| 10 | WPW10474716 | Gear Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 10 | WPW10474715 | Gear Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 11 | W10348259 | Gear Mount (left Hand) |
|
$ 89.87 | |||||
| 11 | W10348260 | Gear Mount (right Hand) |
|
$ 89.90 | |||||
| 12 | W11489993 | Rack (left Hand) (Replaces: W10516603) |
|
$ 23.46 | |||||
| 12 | W11489994 | Rack (right Hand) (Replaces: W10516602) |
|
$ 23.46 | |||||
| 13 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 14 | W11173556 | Shaft, Rack (Replaces: 12812904WD) |
|
$ 32.38 |
