01 - Cooktop Parts
02 - Control Panel Parts

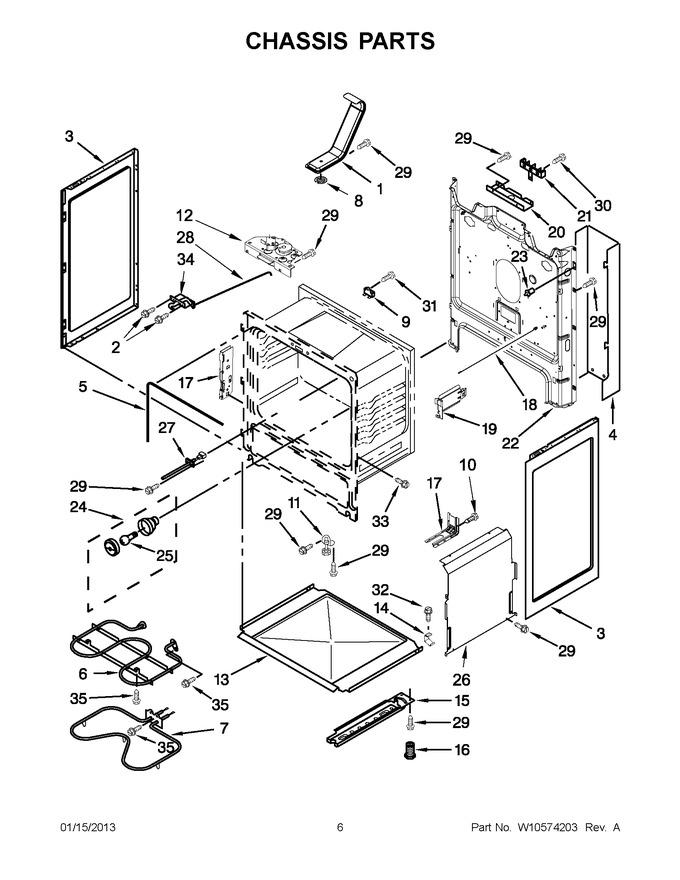

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 2 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 4 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 5 | W11542153 | Seal, Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 191.44 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 8 | 9761301 | Screen, Vent |
|
$ 147.90 | |||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 10 | WP7101P485-60 | Screw (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10107820 | Assembly, Latch Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 13 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 15 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 18 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 22 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 163.01 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | W10450380 | Retainer, Insulation |
|
- | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 34 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 35 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 58.19 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 115.11 |
