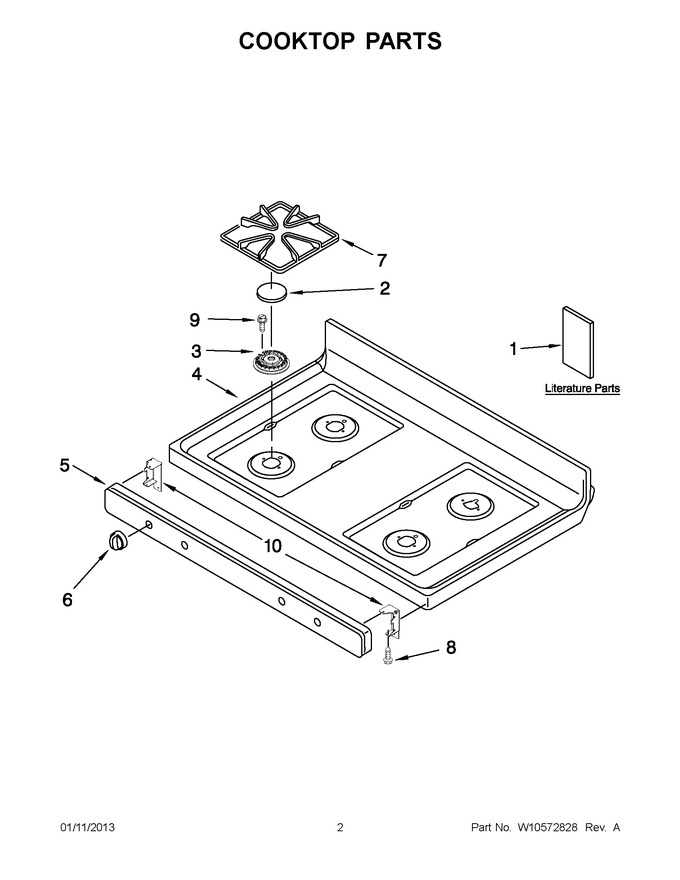

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545337 | Installation Instructions |
|
- | |||||
| 1 | W10545339 | Owners Manual |
|
- | |||||
| 1 | W10357517 | Tech Sheet (english) |
|
- | |||||
| 1 | W10357518 | Tech Sheet (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10170554 | Set, Burner Cap (black) (Replaces: W10170554) |
|
$ 140.26 | |||||
| 3 | WPW10406283 | Burner Head, Semi (9.5k) (left Rear & Right Front) (Replaces: W10406283) |
|
$ 78.02 | |||||
| 3 | WPW10406797 | Burner Head, Rapid (12k) (left Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 3 | WPW10406243 | Burner Head, Auxiliary (6k) (right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 176.18 | |||||
| 6 | WPW10200193 | Knob, Control (black) (Replaces: W10200193) |
|
$ 24.18 | |||||
| 7 | WPW10268483 | Assembly, Grate (black) (Replaces: 8053580) |
|
$ 140.02 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- |
