01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:

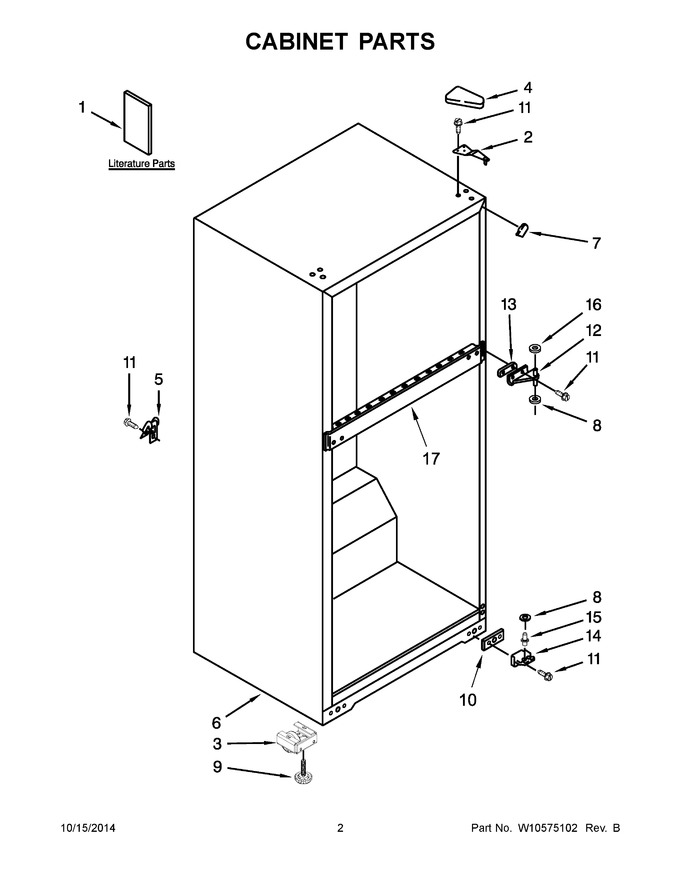

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10431347 | Service And Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 5 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | W10859322 | Filler, Corner (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 8 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 9 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 10 | WP2201567 | Shim, Hinge (bottom) (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2166037 | Assembly, Hinge (center) (Replaces: 2166086) |
|
$ 85.08 | |||||
| 13 | 2166043 | Shim, Hinge (center) (white) |
|
$ 69.76 | |||||
| 14 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 15 | WP2325483 | Pin, Hinge (bottom) (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 16 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 17 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 13A | 2215385 | Shim, Hinge (center) (black) |
|
$ 91.34 | |||||
| 1A | W10315496 | Energy Guide |
|
- | |||||
| 1B | W10256558 | Use And Care Guide |
|
- | |||||
| 4A | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 7A | W11500943 | Filler, Corner (black) (Replaces: 2215384) |
|
$ 7.98 |
