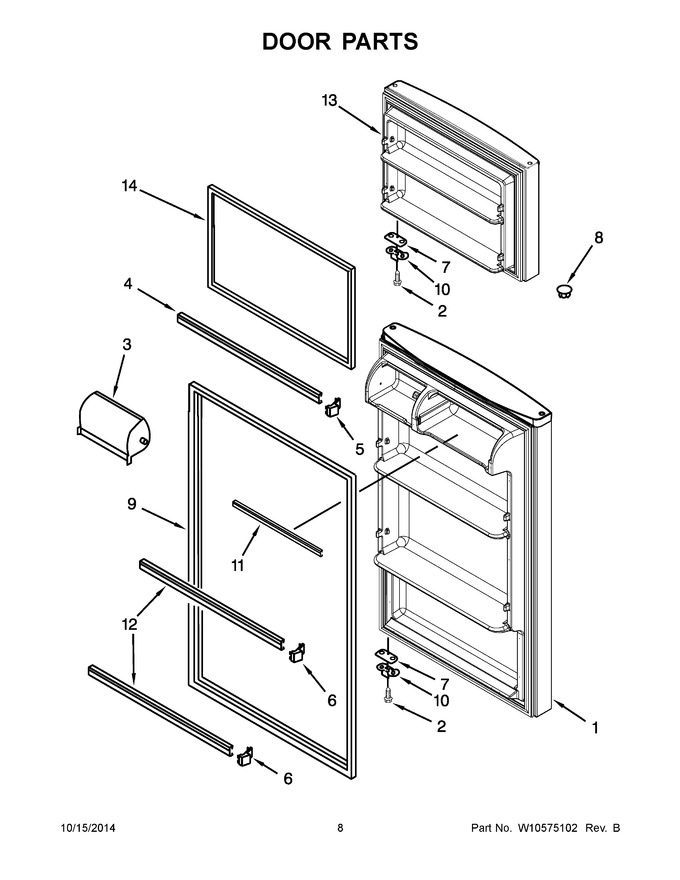

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10267739		Assembly, Refrigerator Door (includes Illus. 9 & Molded Door Handle) (white)		Appelez-nous	-
2	W10276642		Screw   (Replaces: 8533904)				$ 6.41
3	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
4	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 92.50
5	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
6	WP2195916K		Cap, Door Trim End   (Replaces: 2195916)			Immediately	$ 13.18
7	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
8	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
9	WP2319264T		Gasket, Door (beige)   (Replaces: W10190032)			Immediately	$ 192.71
10	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
11	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 127.34
12	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
13	W10267735		Assembly, Freezer Door (includes Illus. 14 & Molded Door Handle) (white)		Appelez-nous	-
14	WP2319263T		Gasket, Door (beige)   (Replaces: W10190031)			Immediately	$ 169.53
13A	LW10267762		Assembly, Freezer Door (includes Illus. 14 & Molded Door Handle) (stainless)   (Replaces: W10267762)				$ 621.61
14A	WP2319263B		Gasket, Door (black)   (Replaces: 2264722)			Immediately	$ 268.28
1A	W10267761		Assembly, Refrigerator Door (includes Illus. 9 & Molded Door Handle) (stainless)		Appelez-nous	-
7A	2258681B		Shim, Door Stop (black)				$ 45.33
8A	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
9A	WP2319264B		Gasket, Door (black)   (Replaces: 2264723)				$ 323.85
