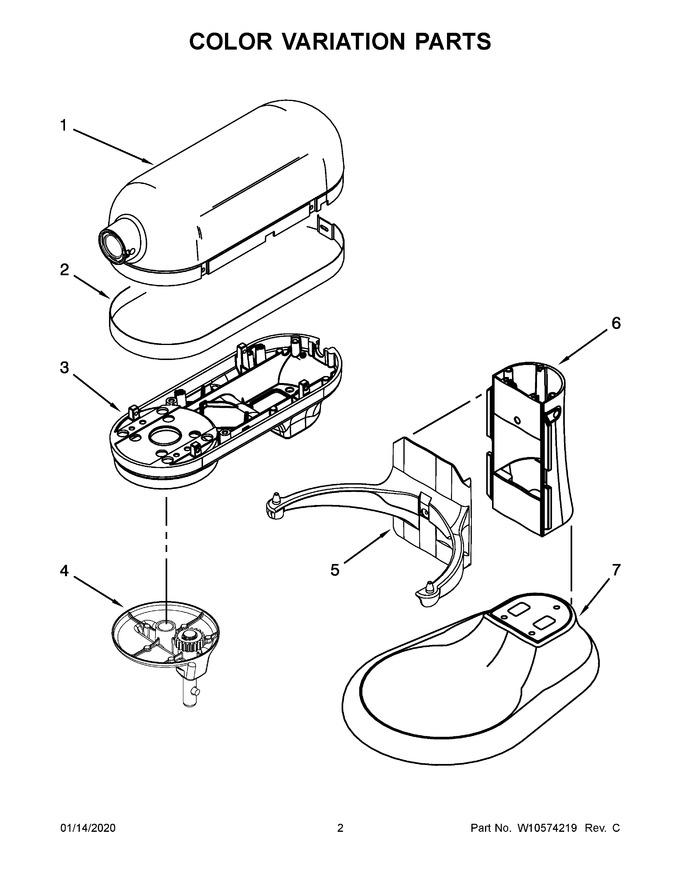

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 2 | W10540366 | Trim Band (dark Platinum) |
|
$ 39.40 | |||||
| 3 | W10307993 | Lower Gearcase (white) (Replaces: W10307855) |
|
$ 61.00 | |||||
| 4 | W10812692 | Planetary (chrome) (Replaces: W10540185) |
|
Immediately | $ 81.83 | ||||
| 5 | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6 | 9703673 | Column And Pins (white) |
|
$ 81.26 | |||||
| 7 | 9703690 | Base & Foot Assembly (white) |
|
- | |||||
| 7 | WPW10453644 | Base & Foot Assembly (espresso) (Replaces: W10453644) |
|
$ 109.07 | |||||
| 7 | 9708728 | Base & Foot Assembly (dark Pewter/slate) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7 | 9708766 | Base & Foot Assembly (nickel Pearl) |
|
$ 81.55 | |||||
| 7 | 9709588 | Base & Foot Assembly (silver) |
|
$ 80.32 | |||||
| 1A | 9708749 | Motor Housing (nickel Pearl) |
|
- | |||||
| 1B | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1C | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1D | 9708711 | Motor Housing (dark Pewter/slate) |
|
- | |||||
| 1E | WPW10453625 | Motor Housing (espresso) (Replaces: W10453625) |
|
$ 118.88 | |||||
| 1F | 9709571 | Motor Housing (silver) |
|
$ 88.20 | |||||
| 3A | W10527046 | Lower Gearcase (nickel Pearl) (Replaces: W10527047) |
|
- | |||||
| 3B | W10535254 | Lower Gearcase (onyx Black) |
|
- | |||||
| 3C | W10524029 | Lower Gearcase (empire Red) |
|
- | |||||
| 3D | W10567055 | Lower Gearcase (dark Pewter/slate) |
|
- | |||||
| 3E | W10609124 | Lower Gearcase (espresso) |
|
- | |||||
| 3F | W10540257 | Lower Gearcase (silver) |
|
- | |||||
| 5A | 9708760 | Bowl Support And Pins (nickel Pearl) |
|
- | |||||
| 5B | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5C | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5D | 9707970 | Bowl Support And Pins (dark Pewter/slate) (Replaces: 9708722) |
|
- | |||||
| 5E | WPW10453636 | Bowl Support And Pins (espresso) (Replaces: W10453636) |
|
$ 95.52 | |||||
| 5F | W10327840 | Bowl Support And Pins (silver) |
|
$ 74.91 | |||||
| 6A | 9708763 | Column And Pins (nickel Pearl) |
|
- | |||||
| 6B | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6C | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6D | 9708725 | Column And Pins (dark Pewter/slate) |
|
- | |||||
| 6E | WPW10453639 | Column And Pins (espresso) (Replaces: W10453639) |
|
$ 105.52 | |||||
| 6F | 9709585 | Column And Pins (silver) |
|
$ 73.94 |
