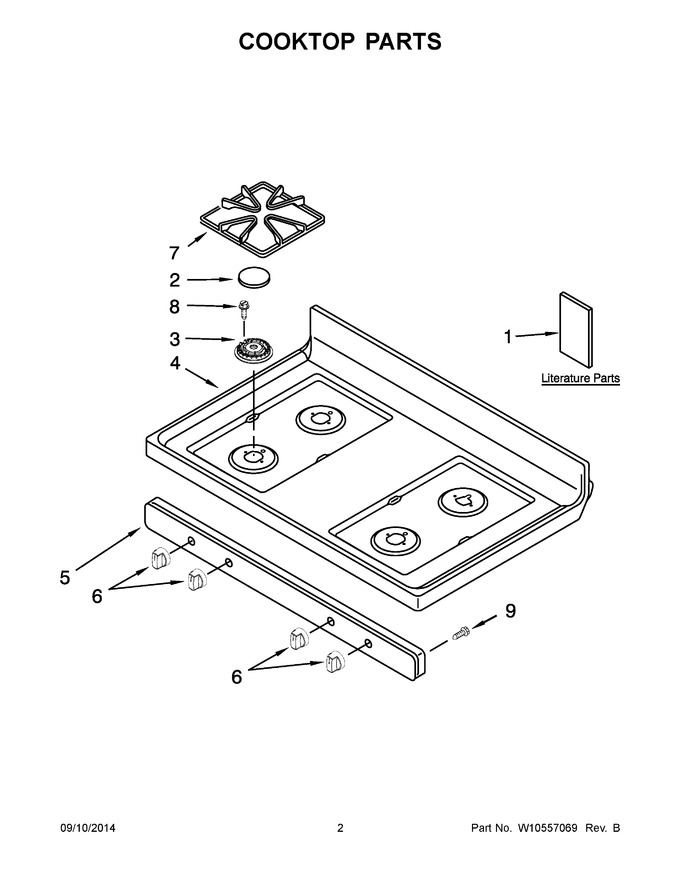

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10658550		Instructions, Installation		Appelez-nous	-
2	WPW10225168		Set, Burner Cap (wetstone)   (Replaces: W10225168)				$ 143.85
3	WPW10406797		Burner Head, Rapid (12k) (left Front)   (Replaces: W10406797)				$ 92.91
4	8272251		Cooktop (white)		Appelez-nous	-
5	W10444449		Panel, Manifold (white)		Appelez-nous	-
6	WPW10339443		Knob, Control (white)   (Replaces: W10339443)				$ 21.54
7	WPW10447925		Set, Grate Burner (wetstone)   (Replaces: W10457553)			Immediately	$ 299.55
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
1A	W10394387		Guide, Use And Care		Appelez-nous	-
1B	W10357517		Tech Sheet (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2A	WPW10225167		Set, Burner Cap (black)   (Replaces: W10225167)				$ 80.03
3A	WPW10406283		Burner Head, Semi (9.5k) (right Front And Left Rear)   (Replaces: W10406283)				$ 78.02
3B	WPW10406243		Burner Head, Auxiliary (6k) (right Rear)   (Replaces: W10406243)			Immediately	$ 39.08
4A	8272253		Cooktop (black)		Appelez-nous	-
4B	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
5A	W10444450		Panel, Manifold (black)		Appelez-nous	-
5B	W10444451		Panel, Manifold (biscuit)		Appelez-nous	-
6A	WPW10339442		Knob, Control (black)   (Replaces: W10339442)			Immediately	$ 18.09
6B	WPW10339444		Knob, Control (biscuit)   (Replaces: W10339444)				$ 21.03
7A	WPW10447925		Set, Grate Burner (black)   (Replaces: W10447925)			Immediately	$ 299.55

    View Diagram in Separate Window       Print Part List
