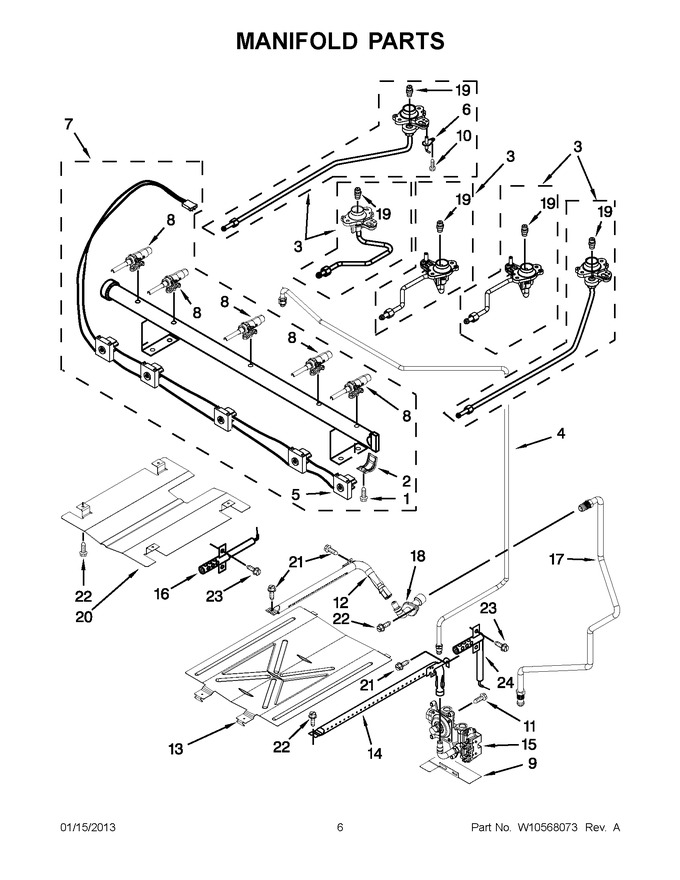

03 - Manifold Parts


04 - Door Parts


05 - Chassis Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W10462939		Orifice, Holder Assembly 5k (right Rear)		Appelez-nous	-
3	W10462946		Orifice Holder, Assembly 8k (center)		Appelez-nous	-
3	W10462943		Orifice, Holder Assembly 15k (right Front)		Appelez-nous	-
3	W10462930		Orifice, Holder Assembly 9.5k (left Rear)		Appelez-nous	-
3	WPW10462934		Orifice, Holder Assembly 15k (left Front)   (Replaces: W10462934)				$ 101.25
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	WPW10413868		Harness, Igniter Includes Switches   (Replaces: W10413868)				$ 198.36
6	WPW10216419		Electrode   (Replaces: W10216419)			Immediately	$ 36.72
7	WPW10413870		Assembly, Manifold   (Replaces: W10413870)				$ 324.60
8	WPW10279614		Valve, Saddle 9.5k (left Front & Right Front)   (Replaces: W10279614)				$ 279.81
8	WPW10279615		Valve, Saddle 15k (right Rear)   (Replaces: W10279615)				$ 258.91
8	WPW10247744		Valve, Saddle 5k (left Rear, Center)   (Replaces: W10247744)				$ 280.12
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	WPW10602001		Valve/regulator   (Replaces: W10224914)				$ 340.97
16	WP8054129		Electrode, Broil   (Replaces: 8054129)			Immediately	$ 137.14
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W10340259		Fitting, Broiler		Appelez-nous	-
19	WPW10170506		Orifice Burner (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
19	WPW10170508		Orifice, Burner (9.5k) (left Rear, Center)   (Replaces: W10170508)				$ 95.21
19	WPW10347414		Orifice Burner 15k (left Front & Right Front)   (Replaces: W10347414)				$ 90.50
20	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
21	3196265		Screw		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
23	W11684507		Screw   (Replaces: 3196385)				$ 14.27
24	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 41.01
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170516		Lp Conversion Kit   (Replaces: W10170516)				$ 111.52
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
NI	WPW10400498		Orifice, Lp Broil   (Replaces: W10400498)				$ 116.21
