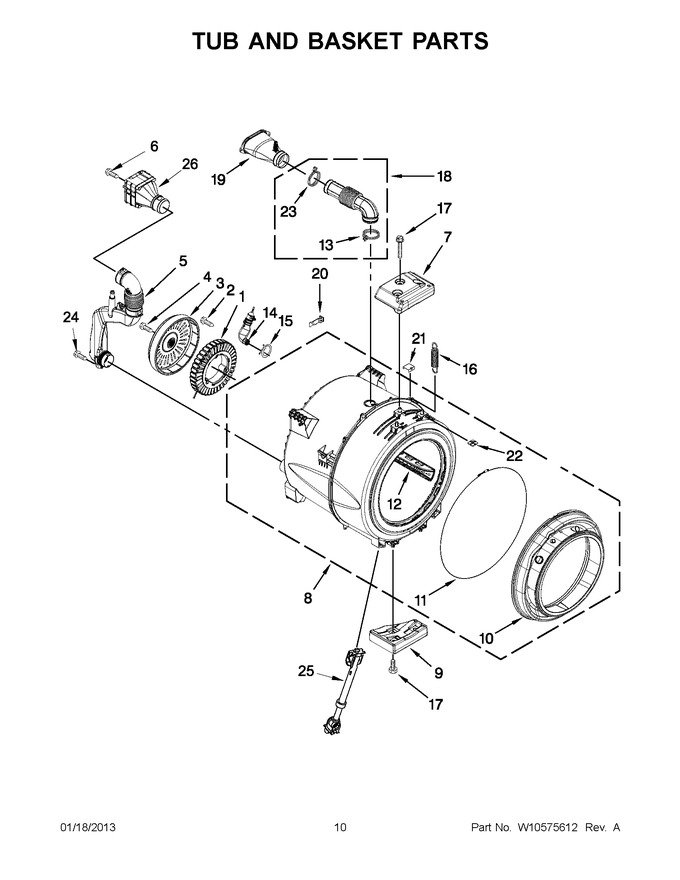

05 - Tub And Basket Parts


06 - Pump Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365754		Stator, Motor   (Replaces: W10213978)			Immediately	$ 480.69
2	WPW10253476		Screw, Stator Mounting   (Replaces: W10253476)				$ 8.30
3	W10365755		Rotor, Motor   (Replaces: W10213980)				$ 342.14
4	W11253212		Screw, Rotor Mounting   (Replaces: W10253477)			Immediately	$ 14.00
5	W10261582		Pipe, Ventilation Assembly				$ 51.11
6	WP8540282		Screw   (Replaces: 8540282)				$ 10.93
7	W10452854		Counterweight, Top		Appelez-nous	-
8	WPW10737541		Tub Assembly, Drum   (Replaces: W10451926)				$ 1,703.31
9	W10452855		Counterweight, Bottom		Appelez-nous	-
10	W11106747		Bellow   (Replaces: W10340443)			Immediately	$ 201.83
11	W11218344		Retainer, Bellow To Tub   (Replaces: W10237502)			Immediately	$ 31.17
12	W10697830		Baffle, Tub   (Replaces: W10279544)				$ 116.10
13	W10353599		Clamp, Hose				$ 31.72
14	WPW10260500		Airtrap Assembly   (Replaces: W10260500)				$ 36.18
15	371499		Clamp, Hose				$ 12.95
16	W11266650		Spring, Suspension (set Of 2)   (Replaces: W10249487)			Immediately	$ 17.01
17	W10261496		Screw, Counterweight				$ 12.50
18	WPW10568614		Vent-hose Coupling Assembly   (Replaces: W10352811)			Immediately	$ 104.94
19	WPW10352818		Vent Tube & Cover   (Replaces: W10352818)				$ 75.01
20	W10316388		Clip, Harness Diverter				$ 10.20
21	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.17
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 6.57
23	W10273034		Clamp, Vent Hose				$ 10.10
24	W10306501		Screw		Appelez-nous	-
25	W11415987		Shock Absorber   (Replaces: W10261492)			Immediately	$ 142.68
26	W10460108		Fan, Ventilation Assembly		Appelez-nous	-
