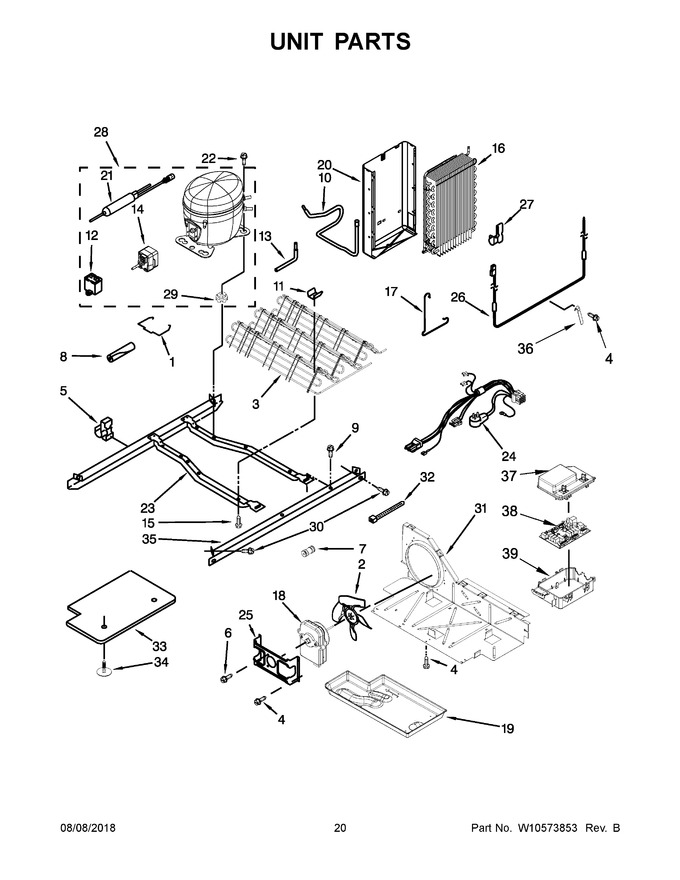

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2212996		Strap, Bale				$ 12.72
2	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 101.49
3	2324712		Assembly, Condenser				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	W10812039		Clip, Wire   (Replaces: 2326941)				$ 11.12
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W10745338		Tube, Suction		Appelez-nous	-
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
12	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
13	2325479		Tube, Process		Appelez-nous	-
14	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
15	W11544659		Screw   (Replaces: 8281232)				$ 14.35
16	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 356.84
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	WP2188874		Motor, Condenser   (Replaces: W11042567)			Immediately	$ 113.96
19	WPW10614158		Tray, Evaporator   (Replaces: W10614158)			Immediately	$ 113.18
20	WPW10194474		Assembly, Heat Shield And Drain Pan   (Replaces: W10194474)				$ 125.51
21	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
22	W11417341		Screw   (Replaces: W10476309)				$ 14.07
23	W10905880		Frame, Unit Mounting (includes Unit Mounting Rail)				$ 137.78
24	W10787341		Unit, Harness		Appelez-nous	-
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.93
26	WPW10495967		Heater, Defrost   (Replaces: W10495967)			Immediately	$ 167.33
27	2161324		Clip, Defrost Heater		Appelez-nous	-
28	W10309988		Compressor (also Order 876765 Tube Kit)   (Replaces: W10253005)			Immediately	$ 587.29
29	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
30	489340		Bolt		Appelez-nous	-
31	W10332806		Baffle, Air				$ 102.82
32	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
33	W10836751		Cover, Unit		Appelez-nous	-
34	489396		Clip				$ 11.26
35	W10905882		Rail, Unit Mounting				$ 123.35
36	W11611126		Heat Probe   (Replaces: W10895163)				$ 23.16
37	W10334855		Cover, Control		Appelez-nous	-
38	W11035833		Electronic Control   (Replaces: W10887252)				$ 409.61
39	2323186		Box, Control				$ 107.48
NI	978026		Valve, Access (5/16")			Immediately	$ 134.49
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	N/P		Refrigerant Charge 5.3 Oz (r-134a)		Appelez-nous	-
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 137.25
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
