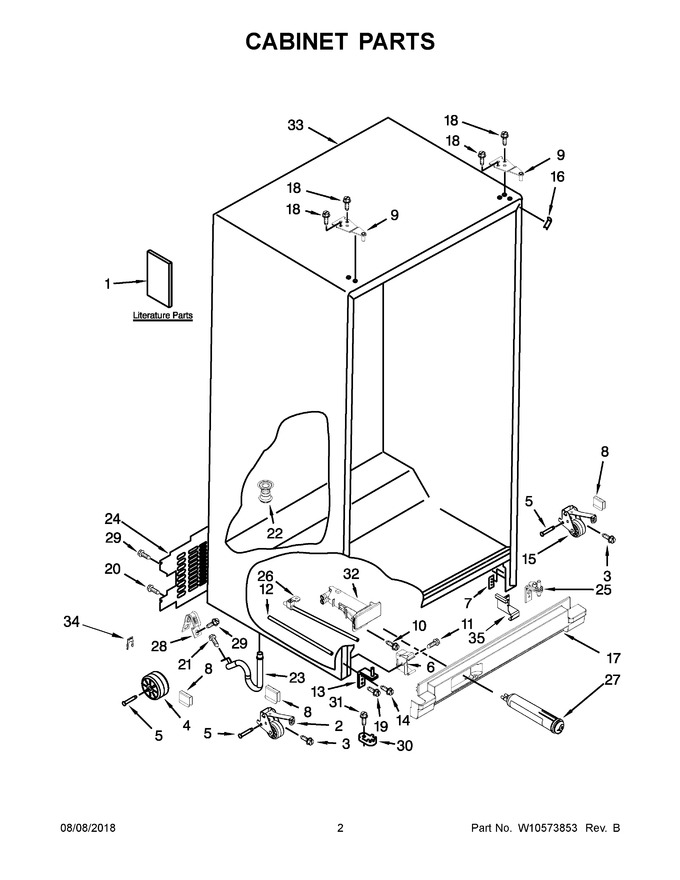

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10480702 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller Assembly (left Hand) (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.75 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.94 | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 19.12 | ||||
| 9 | W11579508 | Top Hinge (white) (Replaces: W10704885) |
|
$ 38.78 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 11 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 12 | WPW10350006 | Tube, Filter Outlet (Replaces: W10350006) |
|
$ 121.32 | |||||
| 13 | W10646418 | Assembly, Bottom Hinge (freezer) (Replaces: W10414753) |
|
Immediately | $ 40.67 | ||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | WPW10304659 | Roller Assembly (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 16 | W11219639 | Filler, Wrapper (white) (Replaces: W11189128) |
|
$ 11.88 | |||||
| 17 | W10393044 | Grille (white) |
|
$ 59.21 | |||||
| 18 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 73.29 | |||||
| 19 | W10856122 | Screw (Replaces: 3400103) |
|
$ 8.27 | |||||
| 20 | WP488488 | Screw (Replaces: 489290) |
|
$ 8.52 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 24 | 2188737 | Cover, Unit |
|
- | |||||
| 25 | W11049959 | Assembly, Bottom Hinge (refrigerator) (Replaces: W10846222) |
|
$ 79.86 | |||||
| 26 | WPW10350007 | Tube, Filter Inlet (Replaces: W10350007) |
|
$ 131.73 | |||||
| 27 | EDR1RXD1B | Filter, Water (Replaces: W10217316) |
|
Immediately | $ 49.99 | ||||
| 28 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 29 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 30 | W11778262 | Closer, Door (freezer) (Replaces: W10846218) |
|
$ 11.63 | |||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 32 | W10862456 | Housing, Water Filter (white) (Replaces: W10350062) |
|
$ 226.70 | |||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.89 | |||||
| 35 | W10355758 | Assembly, Bracket |
|
- | |||||
| 16A | W11219641 | Filler, Wrapper (black) (Replaces: W11189127) |
|
$ 11.88 | |||||
| 16B | W11284444 | Filler, Wrapper (biscuit) (Replaces: W11189129) |
|
- | |||||
| 16C | W11219642 | Filler, Wrapper (grey) (Replaces: W11189126) |
|
Immediately | $ 12.85 | ||||
| 17A | W10393045 | Grille (black) |
|
$ 56.71 | |||||
| 17B | W10393047 | Grille (biscuit) |
|
- | |||||
| 17C | W10393046 | Grille (grey) |
|
$ 52.84 | |||||
| 18A | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.84 | |||||
| 1A | W10449728 | Service & Wiring Sheet |
|
- | |||||
| 1B | W11098950 | Energy Guide |
|
- | |||||
| 32A | W10862460 | Housing, Water Filter (black) (Replaces: W10350063) |
|
Immediately | $ 226.70 | ||||
| 32B | W10861696 | Housing, Water Filter (biscuit) (Replaces: W10350064) |
|
Immediately | $ 120.13 | ||||
| 32C | W10862461 | Housing, Water Filter (grey) (Replaces: W10350065) |
|
Immediately | $ 220.05 | ||||
| 34A | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 9A | W11579508 | Top Hinge (black) (Replaces: W10704884) |
|
$ 38.78 | |||||
| 9B | W11164088 | Top Hinge (grey) (Replaces: W10704881) |
|
$ 69.66 | |||||
| 9C | W11579508 | Top Hinge (biscuit) (Replaces: W10704883) |
|
$ 38.78 |
