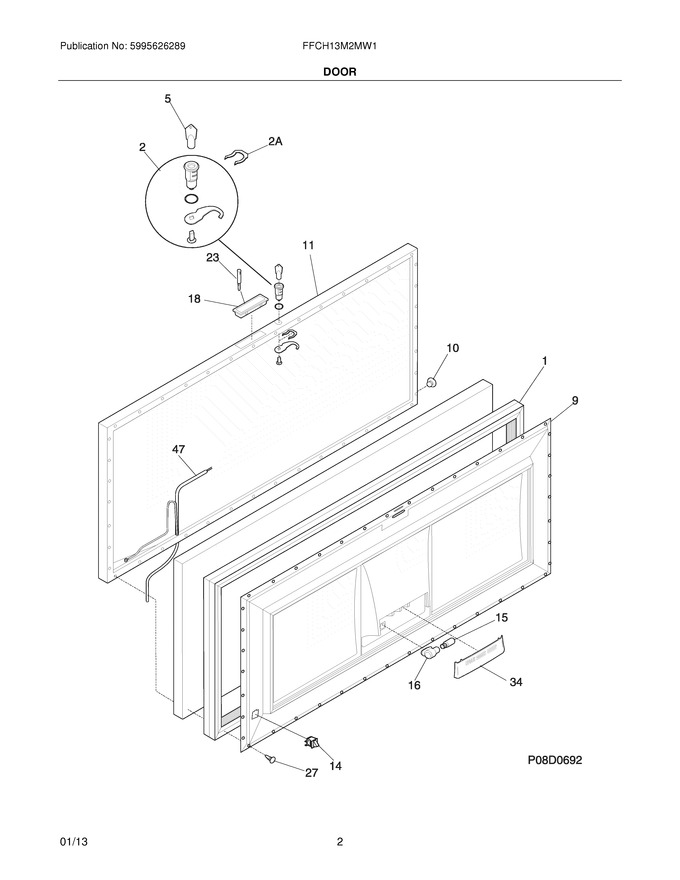

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481111		Gasket-door,white		Appelez-nous	-
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 8.41
9	216828904		Panel-lid				$ 171.31
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129811		Panel-outer Lid, White				$ 142.54
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 77.96
15	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 56.05
16	297139501		Socket,light/lamp ,25 W				$ 21.69
18	297034200		Handle,recessed ,white ,incl/gasket				$ 13.00
23	216212711		Light-signal,amber				$ 21.58
27	5303212828		Clip,panel Mtg				$ 18.48
34	297013900		Shield,light				$ 35.73
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 14.46
2A	297090900		Clip,spring				$ 12.05
F47	216908001		Harness-lid		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 139.81
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 12.05
