SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts

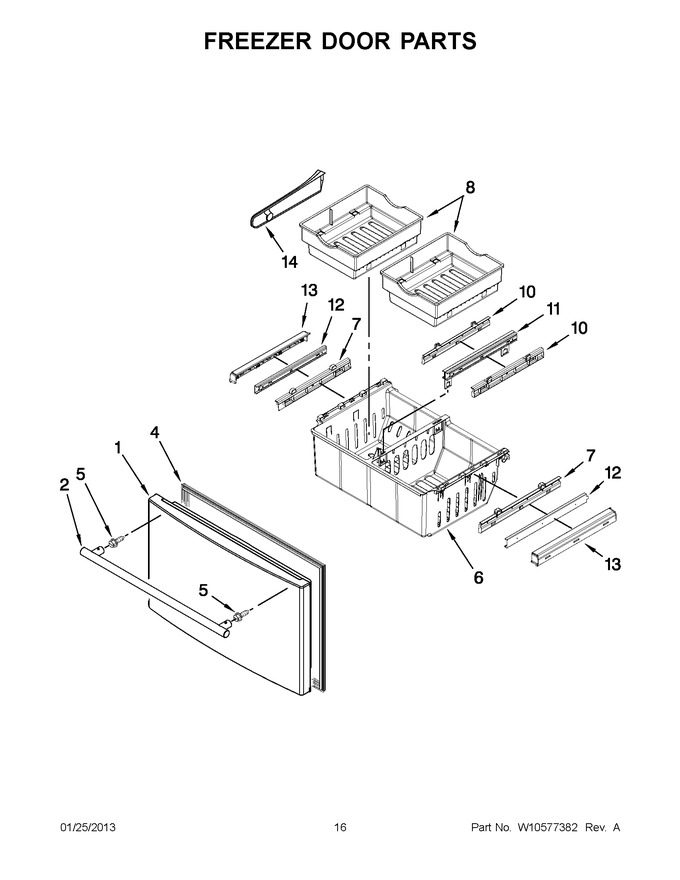

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977874S		Freezer Door (stainless)		Appelez-nous	-
2	WPW10298179		Handle, Door (stainless)   (Replaces: W10298179)				$ 319.69
4	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Outer Bin   (Replaces: 13002603SP)				$ 92.28
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 122.12
10	W10184223		Adapter, Center Bin   (Replaces: 13002604SP)				$ 97.14
11	W10235358		Bracket/glide (assembly)				$ 318.09
12	WPW10235368		Glide, Upper   (Replaces: W10235368)				$ 335.82
13	W10826790		Retainer, Glide (left Hand)   (Replaces: 13002701SP)				$ 62.48
13	W10826791		Retainer, Glide (right Hand)   (Replaces: 13002702SP)				$ 62.48
14	WP67002321		Divider, Pantry   (Replaces: 12709301)				$ 33.79

    View Diagram in Separate Window       Print Part List
