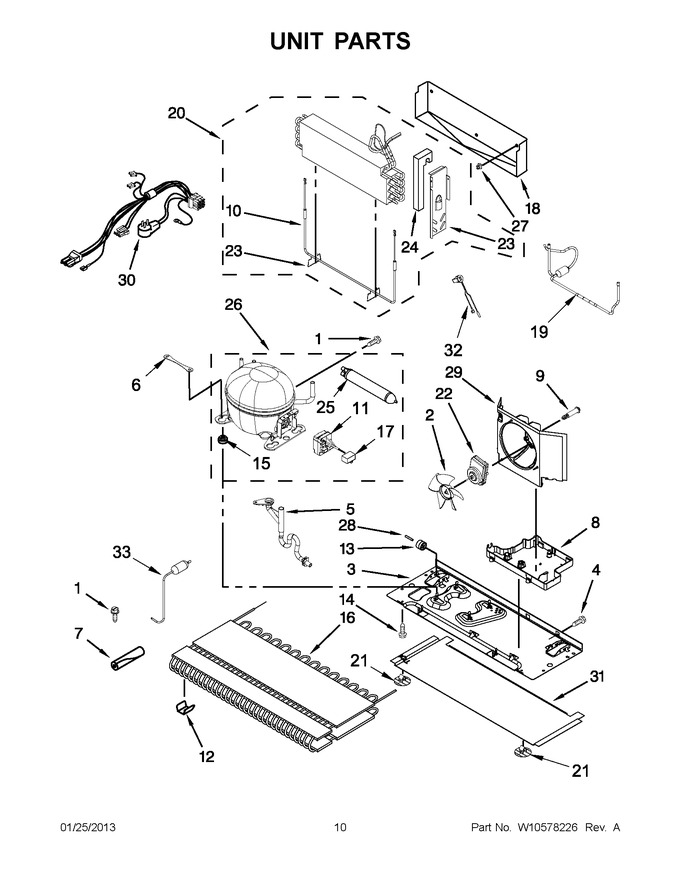

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992101		Screw		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 56.52
3	W10248414		Basepan				$ 93.67
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
5	W11712703		Extension, Drain   (Replaces: W10384378)				$ 40.37
6	W10236396		Strap, Compressor			Immediately	$ 18.73
7	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 19.19
8	W10703218		Tray, Evaporator   (Replaces: W10238584)				$ 182.06
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 11.95
10	WPW10166768		Heater, Defrost   (Replaces: 12729122)				$ 151.96
11	WPW10197428		Start Device, Combination (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 80.29
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
13	12477102		Roller			Immediately	$ 6.64
14	12992101		Screw		Appelez-nous	-
15	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
16	W10458003		Condenser		Appelez-nous	-
17	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
18	W10512220		Drip Tray		Appelez-nous	-
19	WPW10463542		Tube, Suction   (Replaces: W10463542)				$ 87.25
20	WPW10608485		Evaporator   (Replaces: W10492011)			Immediately	$ 335.40
21	W10296661		Clip, Bottom Cover				$ 16.00
22	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
23	W11673433		Clip, Heater   (Replaces: 10428101)				$ 133.36
24	W10491355		Gasket, Airdam				$ 20.05
25	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
26	WPW10466675		Compressor   (Replaces: W10474685)				$ 751.08
27	W11544659		Screw   (Replaces: W10142294)				$ 12.92
28	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
29	WPW10406719		Shroud   (Replaces: W10406719)				$ 74.02
30	WPW10494227		Cord-power   (Replaces: W10494227)				$ 76.23
31	W10278140		Unit Cover, Bottom				$ 84.65
32	W11452196		Thermostat, Defrost Motor, Evaporator (includes Harness, Thermistor, & Defrost Thermostat)   (Replaces: W10561029)			Immediately	$ 204.55
33	W10467035		Assembly, Muffler/discharge Tube		Appelez-nous	-
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	876764		Valve, Access			Immediately	$ 86.33
NI	978028		Valve, Access (œ``)		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978029		Valve, Access (œ``)				$ 93.85
NI	978030		Valve, Access (Ÿ``)				$ 123.53
NI	N/P		Refrigerant Charge (5.25 Ozs. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access			Immediately	$ 121.04
