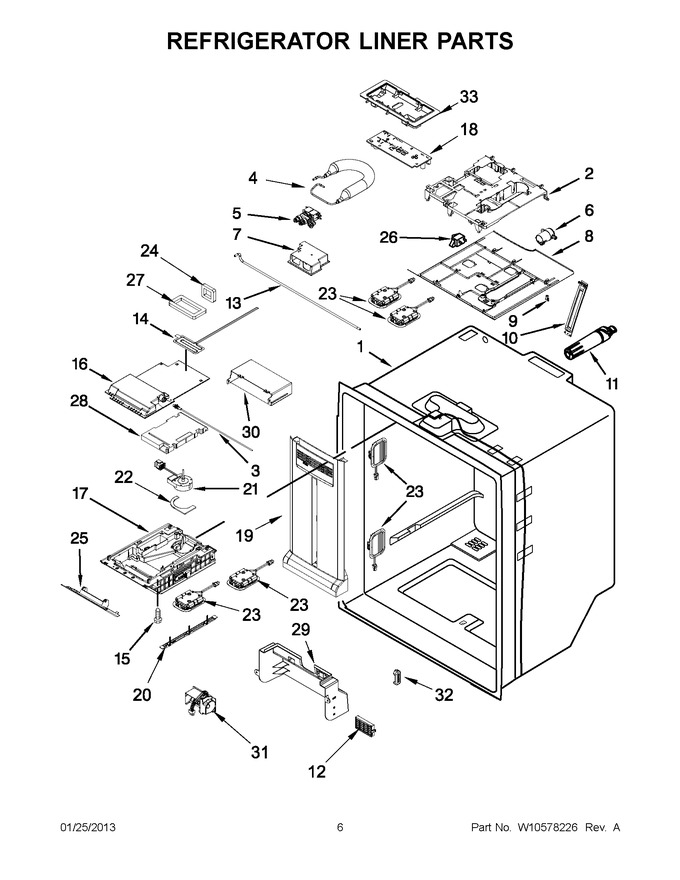

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10842950 | Housing, Water System (Replaces: W10562486) |
|
$ 50.83 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W10482107) |
|
Immediately | $ 118.24 | ||||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668 Qty 3) (Replaces: W10277923) |
|
Immediately | $ 176.97 | ||||
| 5 | WPW10341329 | Valve, Dual Water (Replaces: W10341329) |
|
Immediately | $ 115.24 | ||||
| 6 | W11194438 | Housing, Water Filter (Replaces: W10238156) |
|
Immediately | $ 220.12 | ||||
| 7 | W10811115 | Enclosure, Valve (Replaces: W10279854) |
|
$ 107.85 | |||||
| 8 | W10525805 | Cover, Water Box |
|
- | |||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | WPW10277949 | Door, Filter Access (Replaces: W10277949) |
|
$ 100.91 | |||||
| 11 | W10238154 | Filter, Water |
|
- | |||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W10515793 | Waterline, Valve To Hinge |
|
- | |||||
| 14 | WPW10554299 | Heater, Fill Tube (Replaces: W10554299) |
|
Immediately | $ 101.05 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10331462) |
|
Immediately | $ 157.86 | ||||
| 17 | W10347640 | Icebox Assembly |
|
$ 192.32 | |||||
| 18 | WPW10524406 | Led Assembly (Replaces: W10524406) |
|
$ 304.26 | |||||
| 19 | W11373854 | Air Tower Assembly (Replaces: W10568396) |
|
$ 277.97 | |||||
| 20 | W10515072 | Trim, Icebox |
|
- | |||||
| 21 | W10846539 | Assembly, Blower (Replaces: W10460280) |
|
Immediately | $ 328.41 | ||||
| 22 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 23 | WPW10456436 | Module, Led (Replaces: W10456436) |
|
$ 333.62 | |||||
| 24 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 25 | W11637688 | Fascia Assembly (Replaces: W10553630) |
|
Immediately | $ 113.56 | ||||
| 26 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 27 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | W10483040 | Cover, Damper |
|
- | |||||
| 30 | W10519548 | Adapter Assembly, Ice Box |
|
- | |||||
| 31 | WPW10479155 | Damper, Control (Replaces: W10479155) |
|
Immediately | $ 124.44 | ||||
| 32 | W11238397 | Cover, Thermistor (Replaces: W10438957) |
|
Immediately | $ 23.33 | ||||
| 33 | W11416813 | Cup-led Bracket (Replaces: W10445802) |
|
$ 76.03 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10481392 | Harness, Led Light |
|
- | |||||
| NI | W10475679 | Harness, Dual Valve |
|
- |
