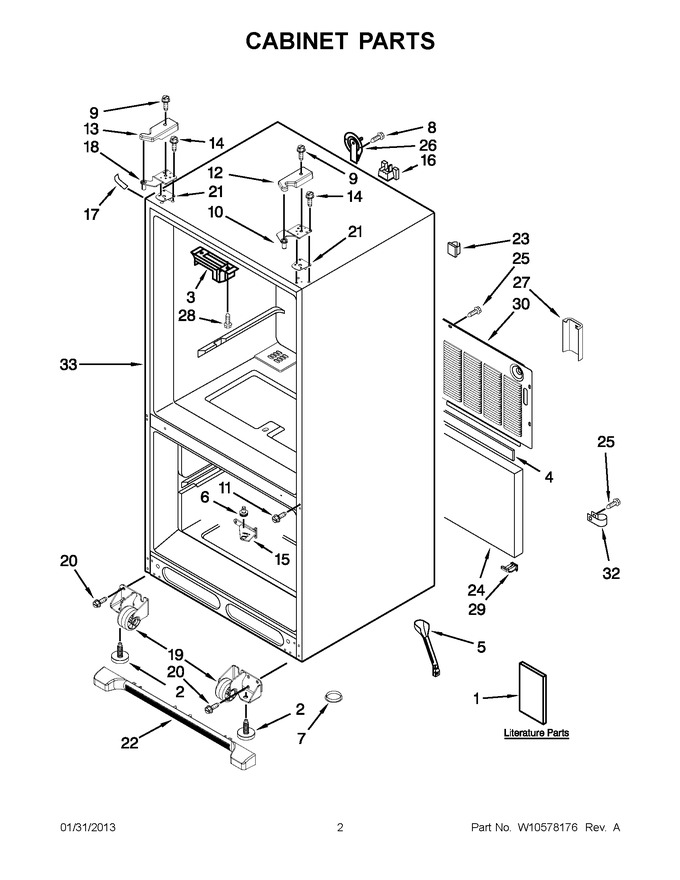

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10277506 | Guide, Use & Care |
|
- | |||||
| 1 | W10280181 | Energy Guide |
|
- | |||||
| 1 | W10544193 | Tech Sheet |
|
- | |||||
| 2 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 46.23 | ||||
| 6 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 12626910ED | Hinge, Top Right |
|
$ 124.87 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | 12629801B | Cover, Right Hinge (black) |
|
$ 25.13 | |||||
| 13 | W10217485 | Cover, Left Hinge (black) |
|
$ 22.72 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | 12692302ED | Hinge, Center (black) |
|
$ 51.93 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | 12626911ED | Hinge, Top Left |
|
$ 89.05 | |||||
| 19 | W11820445 | Roller Assy. (front) (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Roller Assy. (front) (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Top Hinge |
|
- | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561N) |
|
$ 154.57 | |||||
| 23 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 8.17 | |||||
| 24 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 32 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- |
