01 - Cabinet Liner And Door Parts
02 - Evaporator, Grid, And Water Parts
03 - Pump Parts
04 - Control Panel Parts

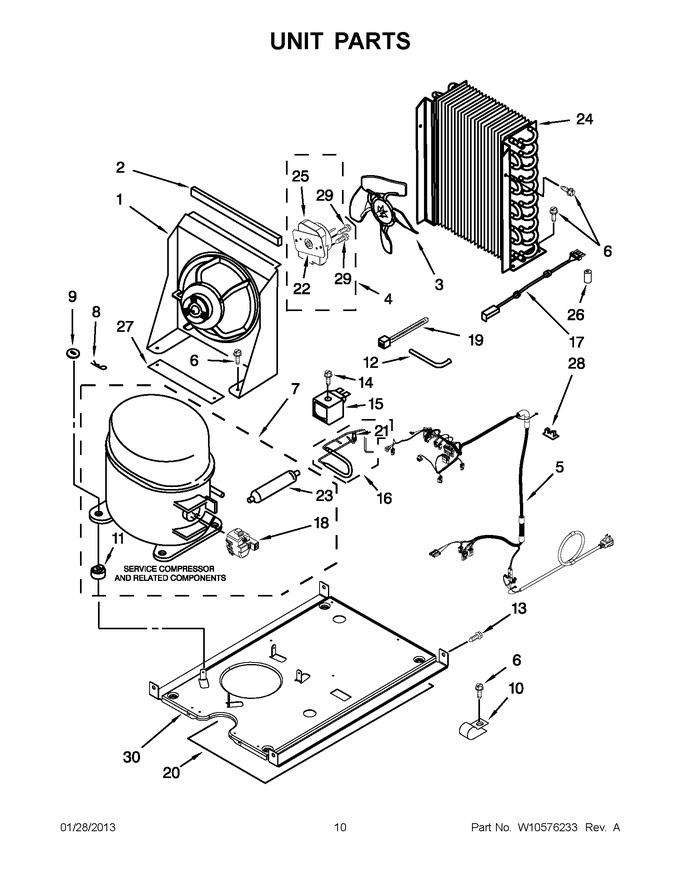

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 4 | W10124096 | Assembly, Motor & Mounting Plate (Replaces: 2315558) |
|
Immediately | $ 112.20 | ||||
| 5 | W10340990 | Wiring Harness, Complete Unit (includes Power Cord) |
|
- | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | W11735041 | Compressor (Replaces: W10536005) |
|
$ 675.23 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 9.25 | |||||
| 10 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 10 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 38.79 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | W11748341 | Valve, Hot Gas (Replaces: W10534030) |
|
Immediately | $ 101.88 | ||||
| 17 | WP2187629 | Jumper, Wire (condenser Fan) (Replaces: 2187629) |
|
$ 132.58 | |||||
| 18 | W10136197 | Start Device |
|
$ 76.43 | |||||
| 19 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 20 | W10282061 | Shield, Heat |
|
- | |||||
| 21 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 326.37 | |||||
| 22 | W10843121 | Drier (Replaces: W10183199) |
|
Immediately | $ 57.13 | ||||
| 22 | WP2217223 | Overload Protector (Replaces: 2217223) |
|
$ 142.71 | |||||
| 24 | WP2313624 | Condenser (Replaces: 2313624) |
|
$ 366.37 | |||||
| 25 | WP2217224 | Start, Device (Replaces: 2217224) |
|
Immediately | $ 104.82 | ||||
| 26 | W10852725 | Grommet-condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 27 | 2217397 | Pad, Foam |
|
- | |||||
| 28 | 1115375 | Clip-wiring |
|
$ 11.15 | |||||
| 29 | 486420 | Screw |
|
- | |||||
| 30 | 2217445 | Base, Unit |
|
- | |||||
| 31 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 95.29 | |||||
| NI | N/P | Refrigerant Charge (6.2 Oz. (r-134a)) |
|
- |
