01 - Top And Cabinet Parts
02 - Door Parts

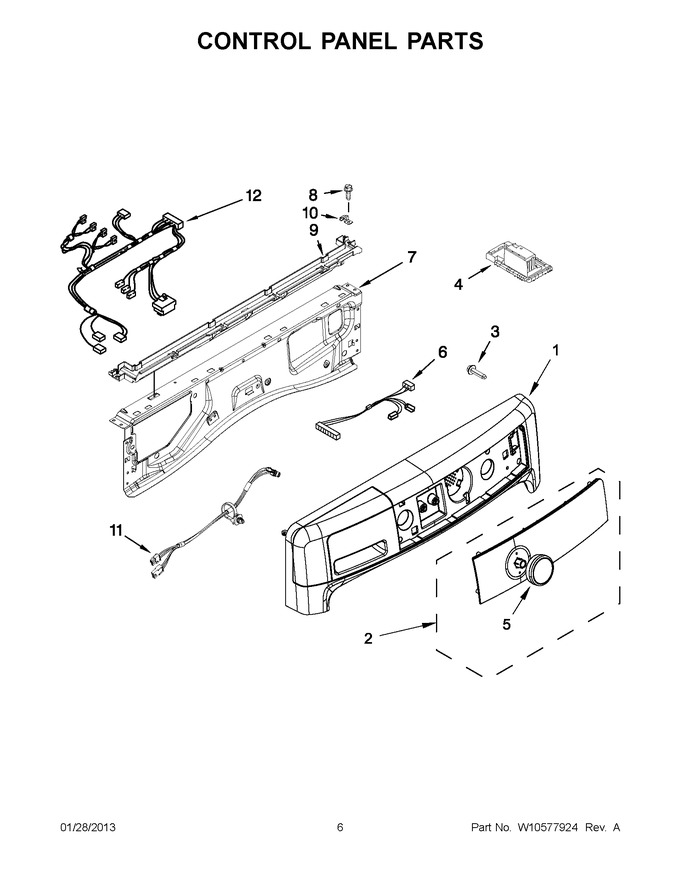

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469293 | Console Assembly (granite) |
|
$ 242.50 | |||||
| 1 | W10469292 | Console Assembly (white) |
|
$ 249.74 | |||||
| 2 | W10391562 | Iml Assembly (white) |
|
$ 476.46 | |||||
| 2 | W10468515 | Iml Assembly (granite) |
|
$ 477.02 | |||||
| 3 | W10489172 | Screw |
|
$ 11.98 | |||||
| 4 | WPW10701569 | Control Unit, Central (Replaces: W10565866) |
|
$ 410.56 | |||||
| 5 | W10853910 | Knob, Control (white) (Replaces: W10519048) |
|
$ 53.94 | |||||
| 6 | WPW10486216 | Harness, Ui Jumper (Replaces: W10486216) |
|
$ 18.00 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 | |||||
| 12 | W10422436 | Harness, Main (upper) |
|
- |
