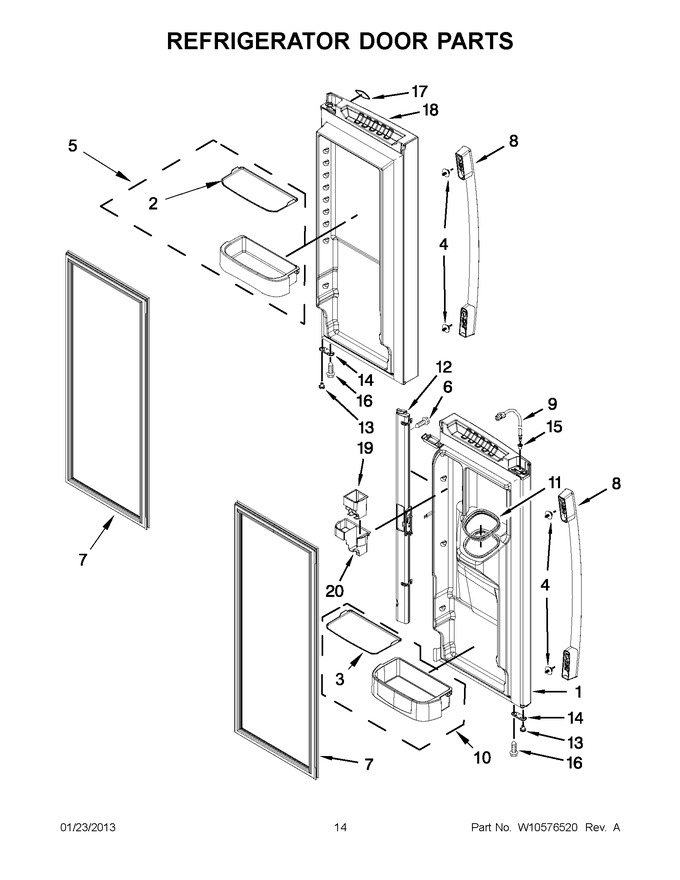

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107878B | Door, Left (black) |
|
- | |||||
| 2 | W10450032 | Gripper, Medium |
|
$ 105.91 | |||||
| 3 | W10450033 | Gripper, Gallon |
|
$ 87.28 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 5 | WPW10451500 | Bucket, Medium (Replaces: W10451500) |
|
$ 107.67 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11378944 | Gasket, Door (black) (Replaces: W10435969) |
|
Immediately | $ 187.59 | ||||
| 8 | W11351146 | Handle, Door (black) (Replaces: W10222985K) |
|
$ 189.08 | |||||
| 9 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 10 | WPW10451501 | Bucket, Gallon (Replaces: W10451501) |
|
Immediately | $ 109.44 | ||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 12 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 342.08 | |||||
| 13 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 14 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 17 | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 18 | 13107853BQ | Door, Right (black) (Replaces: 13107853B) |
|
$ 1,070.61 | |||||
| 19 | WP12977402 | Bucket, Upper (Replaces: 12977402) |
|
$ 79.60 | |||||
| 20 | WP12977502 | Bucket, Lower (Replaces: 12977502) |
|
$ 84.55 |
