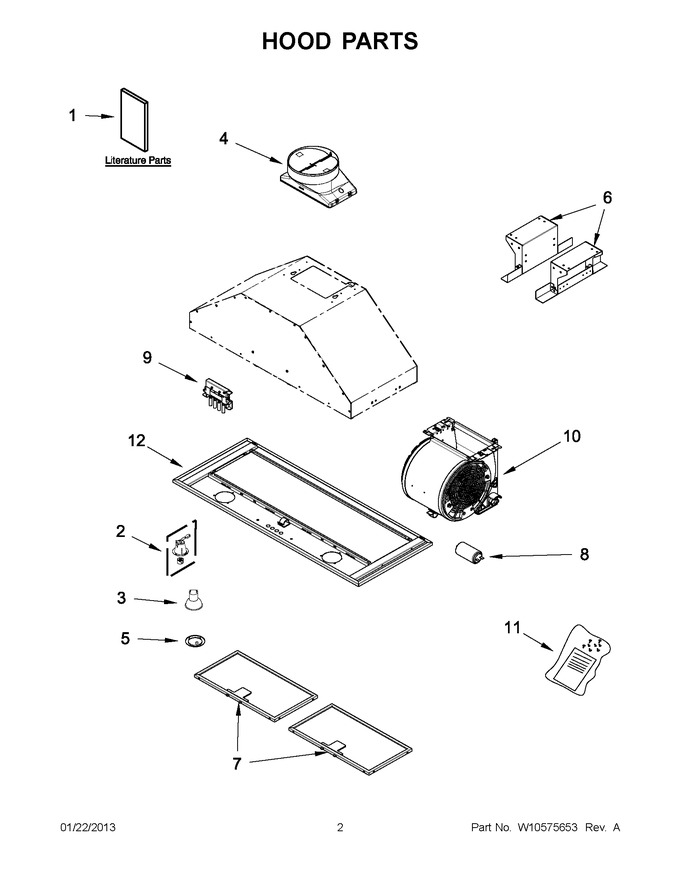

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10502584		Use And Care Guide		Appelez-nous	-
2	WPW10370558		Socket, Light   (Replaces: W10370558)				$ 78.69
3	WPW10291579		Bulb, Light   (Replaces: W10291579)			Immediately	$ 186.21
4	WPW10313841		Damper, Hood   (Replaces: W10313841)				$ 179.54
5	W10351924		Bezel, Lamp				$ 177.83
6	WPW10531090		Bracket, Mounting Hood Liner   (Replaces: W10531090)				$ 269.48
7	WPW10531087		Filter, Grease   (Replaces: W10531087)				$ 306.45
8	W10256657		Capacitor			Immediately	$ 84.93
9	W10531088		Control, Push Button			Immediately	$ 212.65
10	W10531089		Blower-fan		Appelez-nous	-
11	W10576676		Hardware, Installation		Appelez-nous	-
12	WPW10531091		Plate, Face Panel   (Replaces: W10531091)				$ 303.11
NI	W10490330		Accessories, Recirculation Kit (for Non-vented Installations Only)				$ 104.18
NI	W10490310		Accessories, Face Panel (for 36`` X 18`` Cabinet)				$ 454.24
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10272068		Accessories, Charcoal Filter Kit (for Non-vented Installations Only)			Immediately	$ 64.00
NI	W10446915		Accessories, 6`` Makeup Air Kit				$ 316.52
NI	W10576675		Accessories, Strip, Cabinet Filler		Appelez-nous	-
NI	W10490327		Accessories, Face Panel Rear Extension (for 30`` X 18`` Cabinet)				$ 110.01
