SELECT A DIAGRAM

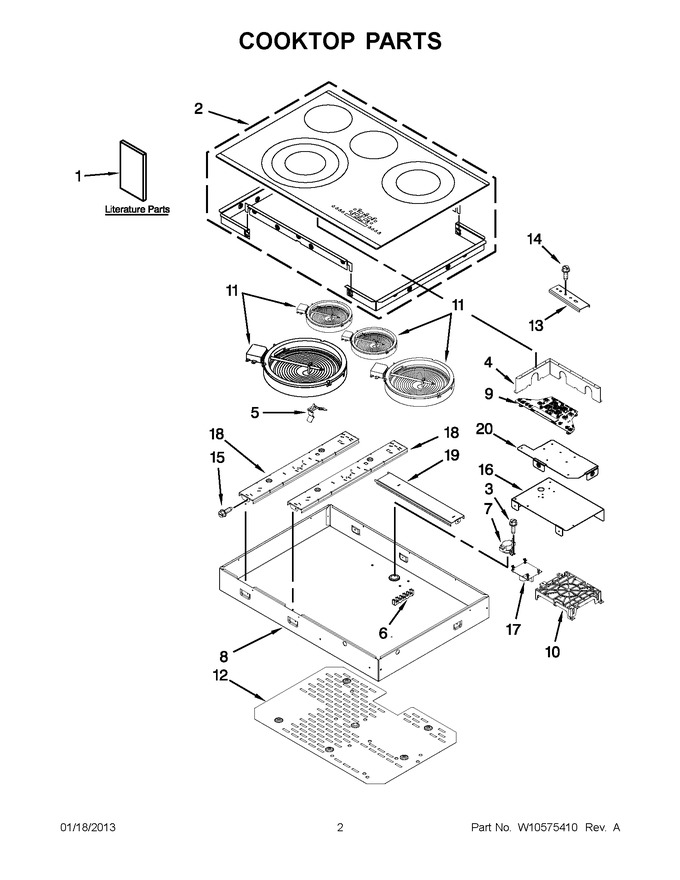

01 - Cooktop Parts


02 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10545504		Owners Manual		Appelez-nous	-
1	W10353374		Installation Instructions		Appelez-nous	-
1	W10352654		Tech Sheet (english)		Appelez-nous	-
1	W10422899		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10505192		Cooktop (stainless)   (Replaces: W10528438)				$ 568.46
2	W10581108		Cooktop (black)   (Replaces: W10528437)				$ 696.21
3	W10443110		Screw			Immediately	$ 15.25
4	W10340183		Shield, Heat		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
6	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
7	W10464566		Switch, Tod High Limit			Immediately	$ 195.77
8	W10340186		Box, Burner		Appelez-nous	-
9	WPW10545370		Interface, User   (Replaces: W10545370)				$ 611.63
10	WPW10387653		Manager, Appliance   (Replaces: W10387653)				$ 460.22
11	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 336.57
11	W11517959		Element (1600w/1400w) (right Rear)   (Replaces: W10275048)			Immediately	$ 134.44
11	W11171119		Element (1200w) (left Rear & Center)   (Replaces: 8273994)			Immediately	$ 182.23
12	W10422067		Bottom, Heat Shield		Appelez-nous	-
13	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 92.86
14	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
16	W10340195		Box, Appliance Manager		Appelez-nous	-
17	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
18	W10457917		Rail, Vertical		Appelez-nous	-
19	W10340178		Rail, Horizontal		Appelez-nous	-
20	W10340196		Support, User Interface		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
