SELECT A DIAGRAM

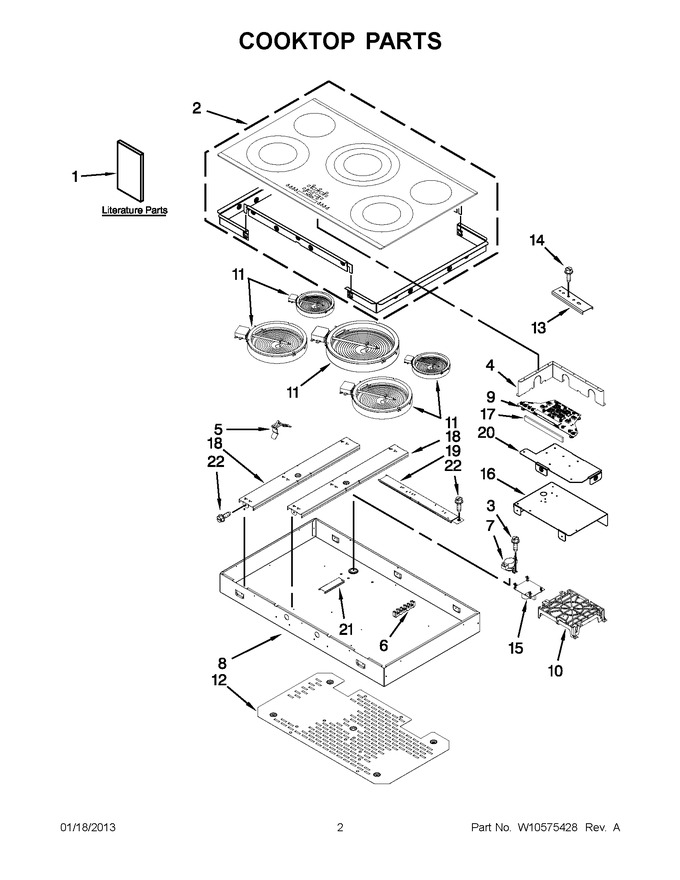

01 - Cooktop Parts


02 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10545504		Owners Manual		Appelez-nous	-
1	W10353374		Installation Instructions		Appelez-nous	-
1	W10352654		Tech Sheet (english)		Appelez-nous	-
1	W10422899		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10566716		Cooktop (stainless)   (Replaces: W10528445)				$ 860.23
2	W10524409		Cooktop (black)   (Replaces: W10528444)				$ 743.49
3	W10443110		Screw			Immediately	$ 15.25
4	W10340230		Shield, Heat		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
6	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
7	W10464566		Switch, Tod High Limit			Immediately	$ 195.77
8	W10432543		Box, Burner		Appelez-nous	-
9	WPW10545371		Interface, User   (Replaces: W10545371)				$ 490.08
10	WPW10387653		Manager, Appliance   (Replaces: W10387653)				$ 460.22
11	W10823720		Element (3000w) (center)   (Replaces: W10187839)			Immediately	$ 386.80
11	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
11	WPW10275049		Element (2500/1200w) (left Front & Right Front)   (Replaces: W10275049)			Immediately	$ 347.53
12	W10422069		Bottom, Heat Shield		Appelez-nous	-
13	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 92.86
14	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
15	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
16	W10340226		Box, Appliance Manager		Appelez-nous	-
17	W10464574		Foam, User Interface				$ 82.70
18	W10340200		Rail, Vertical		Appelez-nous	-
19	W10340199		Rail, Horizontal		Appelez-nous	-
20	W10340228		Support, User Interface		Appelez-nous	-
21	W10340206		Rail, Vertical Short		Appelez-nous	-
22	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
