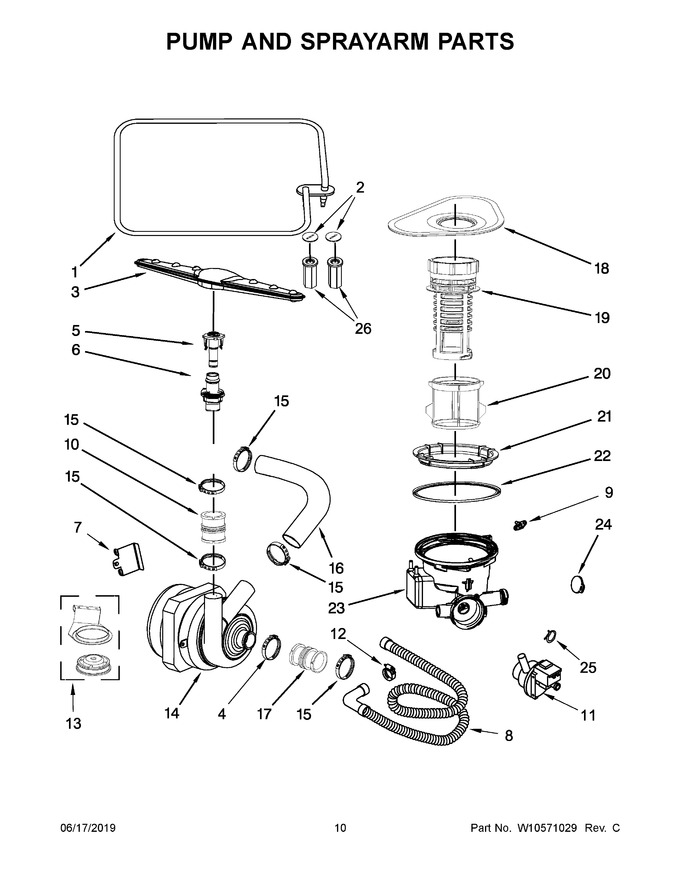

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10567663		Heating Element   (Replaces: W10567663)				$ 128.88
2	W10567662		Nut, Heating Element		Appelez-nous	-
3	W10567666		Sprayarm				$ 37.33
4	W10783615		Clamp   (Replaces: W10567647)			Immediately	$ 16.74
5	W10567667		Support Assembly				$ 20.94
6	W10567641		Support, Lower Manifold				$ 26.37
7	W10567648		Support, Capacitor		Appelez-nous	-
8	WPW10567628		Hose, Drain   (Replaces: W10567628)				$ 118.30
9	W10567618		Thermistor				$ 168.56
10	W10567643		Hose				$ 63.50
11	W11677711		Pump, Drain   (Replaces: W10567661)			Immediately	$ 195.74
12	W10567654		Clamp				$ 17.05
13	W10567644		Motor Support Assembly				$ 29.52
14	WPW10567645		Motor Assembly   (Replaces: W10567645)			Immediately	$ 280.80
15	W10789434		Clamp   (Replaces: W10567646)			Immediately	$ 12.96
16	W10567642		Hose				$ 99.66
17	W10567649		Hose				$ 65.72
18	W10567613		Sieve				$ 102.67
19	W10567659		Filter, Drain				$ 30.18
20	W10567615		Microfilter				$ 31.72
21	W10567616		Nut, Sump				$ 23.26
22	W10567617		Gasket, Sump				$ 34.52
23	W10567619		Sump				$ 181.47
24	W10567620		Valve, Check		Appelez-nous	-
25	W10567621		Clamp				$ 37.69
26	W10567629		Sheild, Heating Probe				$ 11.84

    View Diagram in Separate Window       Print Part List
