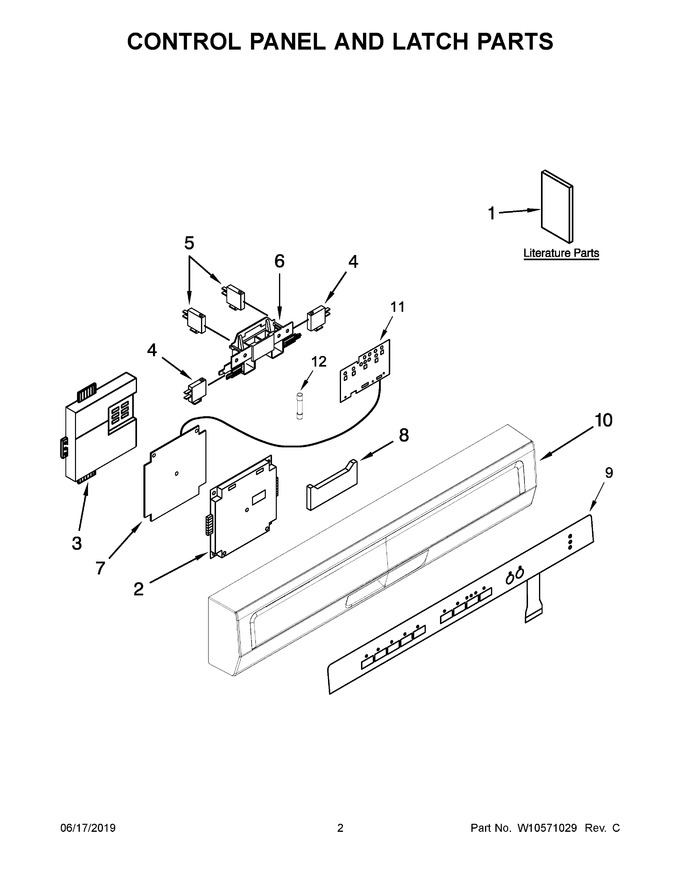

02 - Control Panel And Latch Parts


03 - Tub Parts


04 - Door And Toe Panel Parts


05 - Frame Parts


06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518037		Installation Instructions		Appelez-nous	-
2	W10567583		Cover, Control Main		Appelez-nous	-
3	W10567584		Base, Control Main				$ 30.79
4	W10859566		Microswitch   (Replaces: W10567585)				$ 29.97
5	WPW10567586		Switch, Breakwater (left)   (Replaces: W10567586)				$ 62.97
6	W10567588		Bolt, Latch				$ 40.96
7	W10567672		Control, Electronic Main				$ 85.14
8	W10567590		Handle		Appelez-nous	-
9	W10567685		Overlay (black)				$ 260.30
10	WPW10567678		Console (black)   (Replaces: W10567678)				$ 199.77
11	WPW10567589		Control, Electronic Small   (Replaces: W10567589)				$ 295.26
12	W10487251		Fuse				$ 27.35
10A	WPW10567676		Console (white)   (Replaces: W10567676)				$ 199.77
10B	W10567679		Console (stainless)				$ 143.06
1A	W10518029		Use & Care Guide, English/french		Appelez-nous	-
1B	W10518031		Use & Care Guide, Spanish		Appelez-nous	-
5A	W10567587		Switch, Breakwater (right)				$ 40.68
9A	WPW10567681		Overlay (white)   (Replaces: W10567681)				$ 288.60
9B	W10567687		Overlay (stainless)				$ 152.87
