01 - Door Panel Parts

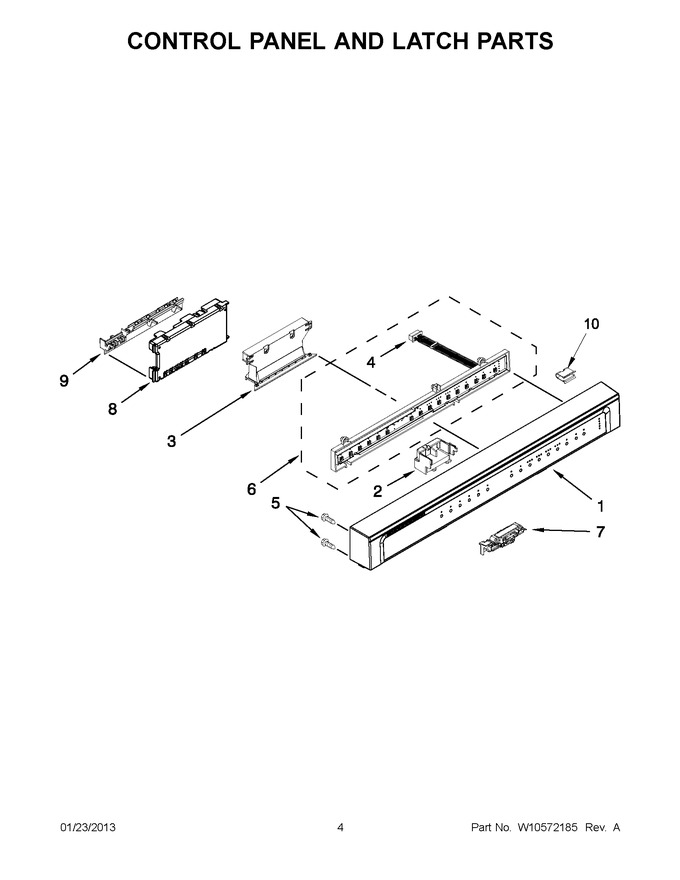

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10479854		Console Assembly (includes Insert) (black)   (Replaces: W10479854)				$ 219.12
1	WPW10505573		Console Assembly (includes Insert) (white)   (Replaces: W10505573)				$ 199.77
1	WPW10350328		Console Assembly (includes Insert) (universal Silver)   (Replaces: W10505575)				$ 139.26
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W10475758		Handle Pocket (white)   (Replaces: W10475759)				$ 20.70
3	W10475758		Handle Pocket (black)				$ 20.70
4	W10552538		Jumper, Wire		Appelez-nous	-
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	WPW10629167		Housing Assembly, User Interface   (Replaces: W10440699)				$ 337.76
7	W10619006		Latch Assembly (includes Switch)   (Replaces: W10380262)			Immediately	$ 39.09
8	W10473200		Control, Electronic   (Replaces: W10461370)				$ 283.77
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
10	W10815836		Clip, Panel   (Replaces: W10485367)				$ 8.25
