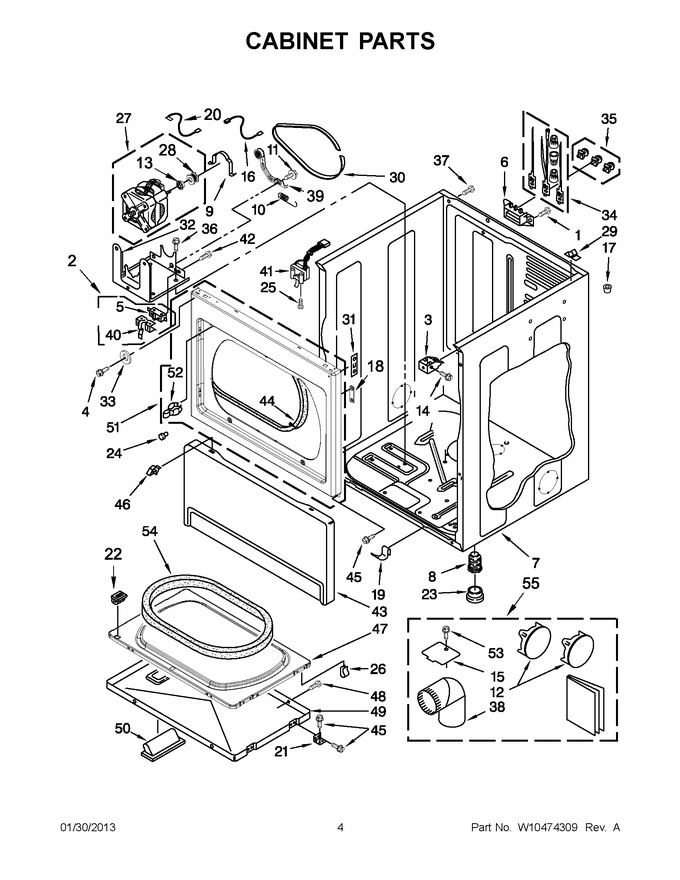

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
2	279782		Switch Assembly   (Replaces: 8066134)			Immediately	$ 54.44
3	3391846		Clip, Front Panel				$ 21.15
4	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
5	279782		Switch - Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 419.21
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug-multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
14	681615		Screw   (Replaces: 3391915)				$ 13.88
15	WPW10354249		Cover Plate, Exhaust Plate   (Replaces: 3394331)				$ 8.96
16	W10167612		Wire, Belt Switch				$ 12.78
17	356674		Cone, Wedge				$ 33.19
18	W10191265		Plug, Hinge				$ 44.28
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
20	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
21	WPW10279703		Hinge & Pin Assembly   (Replaces: W10279703)				$ 72.22
22	279570		Door Catch Assembly   (Replaces: 3392538)			Immediately	$ 8.89
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
24	693152		Bumper				$ 10.96
25	WP3395530		Screw   (Replaces: 697773)				$ 7.70
26	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 7.71
27	W10841144		Motor   (Replaces: W10396031)			Immediately	$ 234.31
28	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
29	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 7.70
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
35	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
36	WP681414		Screw, Door Switch Mounting   (Replaces: 3390663)			Immediately	$ 7.85
37	W10850756		Screw   (Replaces: 8533974)				$ 7.76
38	279731		No Description Avilable		Appelez-nous	-
39	WPW10344193		Pulley-idler Assembly   (Replaces: W10344193)			Immediately	$ 83.77
40	WP8066120		Lever, Switch   (Replaces: 8066120)			Immediately	$ 33.11
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw, Door Switch   (Replaces: 98129)				$ 7.56
43	WP3406797		Mounting (white)   (Replaces: 697215)				$ 238.33
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
48	WPW10139210		Screw   (Replaces: W10139210)				$ 7.50
49	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
50	3389522		Handle, Door				$ 77.90
51	W10242810		Panel, Front (white)   (Replaces: W10192882)				$ 361.07
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
54	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
55	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
