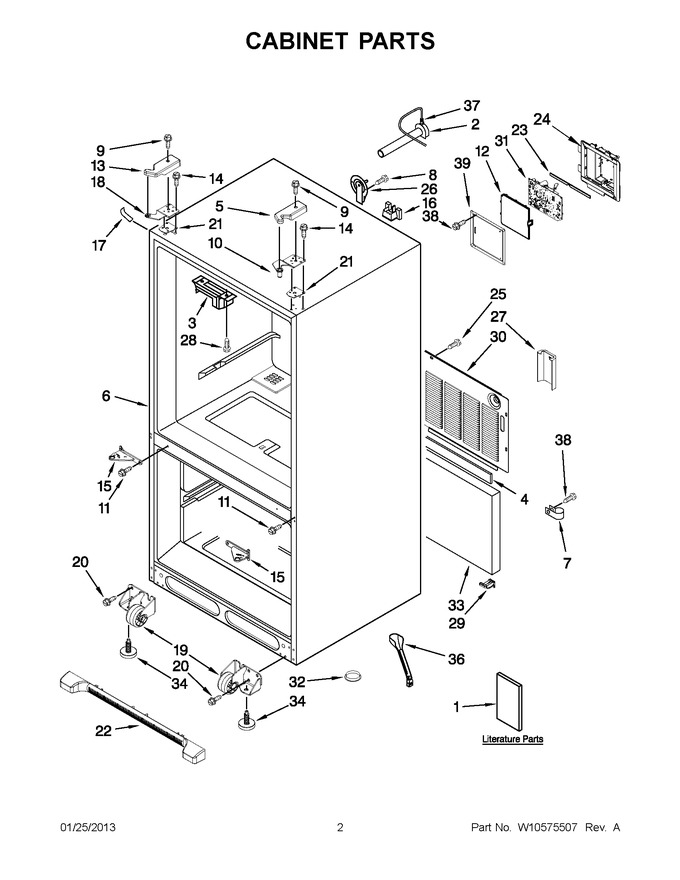

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door


08 - Ice Maker


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10273820		Energy Guide		Appelez-nous	-
1	W10544193		Tech Sheet		Appelez-nous	-
1	W10366208		Guide, Use & Care		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 119.86
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket				$ 13.03
5	67005958		Cover, Right Hinge (white)   (Replaces: 12962302WN)				$ 21.57
5	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302BN)				$ 22.54
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	W11456069		Clamp-tube   (Replaces: M0108107)			Immediately	$ 22.40
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592374		Right Hand   (Replaces: 12963205ED)			Immediately	$ 31.90
11	W11573362		Screw   (Replaces: W10339086)				$ 14.72
12	W11226688		Lid, Hv Box   (Replaces: 12957702SP)				$ 85.16
13	W10337647		Cover, Left Hinge (black)   (Replaces: 12962301B)			Immediately	$ 23.33
13	WPW10337634		Cover, Left Hinge (white)   (Replaces: 12962301W)			Immediately	$ 23.54
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 91.53
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 91.53
15	13000002WD		Hinge, Center (rt) (white)				$ 160.99
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 97.92
16	12777701		Block, Fill Tube				$ 7.17
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17	12587703W		Cover, Corner (white)				$ 22.90
18	W11592375		Left Hand   (Replaces: 12963204ED)				$ 31.92
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	12999501		Shim, Hinge (left Hand)				$ 99.53
21	12999502		Shim, Hinge (right Hand)				$ 100.60
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559N)				$ 153.66
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561N)				$ 154.57
23	12957801SP		Gasket, Hv Box		Appelez-nous	-
24	W10257665		Box, Hv Control				$ 50.84
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard, Dual Water Valve				$ 15.71
28	WP7101P126-60		Screw, Block   (Replaces: 12990303)			Immediately	$ 8.36
29	W10528513		Sweep, Dual Tube				$ 43.74
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 207.99
31	WPW10317076		Board, Hv Control   (Replaces: W10317076)			Immediately	$ 412.84
32	A3076901		Plug, Button				$ 5.70
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
36	W10619951		Tube-drain   (Replaces: W10344402)			Immediately	$ 42.39
37	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
38	W11686675		Screw   (Replaces: 12990702)				$ 14.27
39	12961602		Cover, Control Box				$ 116.19
